Surface values not reported

[2173910144@…]

The following bug report has been submitted:
Platform: Windows-10-10.0.19042
ChimeraX Version: 1.3 (2021-12-08 23:08:33 UTC)
Description
Problem :

I have enable "Report value at mouse position" in the Surface Color panel. When I hover the mouse over for a surface, the exact values were not displayed in the bottom. ChimeraX is version 1.3, and the computer runs Windows. Tom tested in ChimeraX 1.3 with electrostatic potential on a solvent excluded surface on Mac and it all worked for him, showing the values under the mouse in the status line.

Log:
Startup Messages
---
warning | Your computer has Intel graphics driver 7584 with a known bug that
causes all Qt user interface panels to be blank. ChimeraX can partially fix
this but may make some panel titlebars and edges black. Hopefully newer Intel
graphics drivers will fix this.
note | available bundle cache has not been initialized yet

UCSF ChimeraX version: 1.3 (2021-12-08)
© 2016-2021 Regents of the University of California. All rights reserved.
How to cite UCSF ChimeraX

open C:\Users\FAYE\Desktop\BT1\Bt1.pdb format pdb

Chain information for Bt1.pdb #1
---
Chain | Description
A | No description available

surface

open C:/Users/FAYE/Desktop/BT1/BT1.dx

Opened BT1.dx as #2, grid size 225,225,161, pixel 0.519,0.532,0.54, shown at
level -54.5,54.5, step 1, values float32

ui tool show "Surface Color"

color electrostatic #1.1 map #2 palette -30,#ff0000:0,#ffffff:20,#0000ff

Map values for surface "Bt1.pdb_A SES surface": minimum -17.71, mean 6.002,
maximum 28.73

No surface chosen for coloring

help help:user/tools/surfacecolor.html

No surface chosen for coloring

[Repeated 1 time(s)]

help help:user/tools/surfacecolor.html

help help:contact.html

OpenGL version: 3.3.0 - Build 26.20.100.7584
OpenGL renderer: Intel(R) UHD Graphics
OpenGL vendor: Intel
Manufacturer: HUAWEI
Model: HBB-WX9
OS: Microsoft Windows 10 家庭中文版 (Build 19042)
Memory: 17,004,482,560
MaxProcessMemory: 137,438,953,344
CPU: 8 Intel(R) Core(TM) i5-10210U CPU @ 1.60GHz
OSLanguage: zh-CN
Locale: ('zh_CN', 'cp936')
PyQt5 5.15.2, Qt 5.15.2
Installed Packages:

alabaster: 0.7.12
appdirs: 1.4.4
Babel: 2.9.1
backcall: 0.2.0
blockdiag: 2.0.1
certifi: 2021.10.8
cftime: 1.5.1.1
charset-normalizer: 2.0.9
ChimeraX-AddCharge: 1.2.2
ChimeraX-AddH: 2.1.11
ChimeraX-AlignmentAlgorithms: 2.0
ChimeraX-AlignmentHdrs: 3.2
ChimeraX-AlignmentMatrices: 2.0
ChimeraX-Alignments: 2.2.3
ChimeraX-AlphaFold: 1.0
ChimeraX-AltlocExplorer: 1.0.1
ChimeraX-AmberInfo: 1.0
ChimeraX-Arrays: 1.0
ChimeraX-Atomic: 1.31
ChimeraX-AtomicLibrary: 4.2
ChimeraX-AtomSearch: 2.0
ChimeraX-AtomSearchLibrary: 1.0
ChimeraX-AxesPlanes: 2.0
ChimeraX-BasicActions: 1.1
ChimeraX-BILD: 1.0
ChimeraX-BlastProtein: 2.0
ChimeraX-BondRot: 2.0
ChimeraX-BugReporter: 1.0
ChimeraX-BuildStructure: 2.6.1
ChimeraX-Bumps: 1.0
ChimeraX-BundleBuilder: 1.1
ChimeraX-ButtonPanel: 1.0
ChimeraX-CageBuilder: 1.0
ChimeraX-CellPack: 1.0
ChimeraX-Centroids: 1.2
ChimeraX-ChemGroup: 2.0
ChimeraX-Clashes: 2.2.2
ChimeraX-ColorActions: 1.0
ChimeraX-ColorGlobe: 1.0
ChimeraX-ColorKey: 1.5
ChimeraX-CommandLine: 1.1.5
ChimeraX-ConnectStructure: 2.0
ChimeraX-Contacts: 1.0
ChimeraX-Core: 1.3
ChimeraX-CoreFormats: 1.1
ChimeraX-coulombic: 1.3.2
ChimeraX-Crosslinks: 1.0
ChimeraX-Crystal: 1.0
ChimeraX-CrystalContacts: 1.0
ChimeraX-DataFormats: 1.2.2
ChimeraX-Dicom: 1.0
ChimeraX-DistMonitor: 1.1.5
ChimeraX-DistUI: 1.0
ChimeraX-Dssp: 2.0
ChimeraX-EMDB-SFF: 1.0
ChimeraX-ExperimentalCommands: 1.0
ChimeraX-FileHistory: 1.0
ChimeraX-FunctionKey: 1.0
ChimeraX-Geometry: 1.1
ChimeraX-gltf: 1.0
ChimeraX-Graphics: 1.1
ChimeraX-Hbonds: 2.1.2
ChimeraX-Help: 1.2
ChimeraX-HKCage: 1.3
ChimeraX-IHM: 1.1
ChimeraX-ImageFormats: 1.2
ChimeraX-IMOD: 1.0
ChimeraX-IO: 1.0.1
ChimeraX-ItemsInspection: 1.0
ChimeraX-Label: 1.1
ChimeraX-ListInfo: 1.1.1
ChimeraX-Log: 1.1.4
ChimeraX-LookingGlass: 1.1
ChimeraX-Maestro: 1.8.1
ChimeraX-Map: 1.1
ChimeraX-MapData: 2.0
ChimeraX-MapEraser: 1.0
ChimeraX-MapFilter: 2.0
ChimeraX-MapFit: 2.0
ChimeraX-MapSeries: 2.1
ChimeraX-Markers: 1.0
ChimeraX-Mask: 1.0
ChimeraX-MatchMaker: 2.0.4
ChimeraX-MDcrds: 2.6
ChimeraX-MedicalToolbar: 1.0.1
ChimeraX-Meeting: 1.0
ChimeraX-MLP: 1.1
ChimeraX-mmCIF: 2.4
ChimeraX-MMTF: 2.1
ChimeraX-Modeller: 1.2.6
ChimeraX-ModelPanel: 1.2.1
ChimeraX-ModelSeries: 1.0
ChimeraX-Mol2: 2.0
ChimeraX-Morph: 1.0
ChimeraX-MouseModes: 1.1
ChimeraX-Movie: 1.0
ChimeraX-Neuron: 1.0
ChimeraX-Nucleotides: 2.0.2
ChimeraX-OpenCommand: 1.7
ChimeraX-PDB: 2.6.5
ChimeraX-PDBBio: 1.0
ChimeraX-PDBLibrary: 1.0.2
ChimeraX-PDBMatrices: 1.0
ChimeraX-PickBlobs: 1.0
ChimeraX-Positions: 1.0
ChimeraX-PresetMgr: 1.0.1
ChimeraX-PubChem: 2.1
ChimeraX-ReadPbonds: 1.0.1
ChimeraX-Registration: 1.1
ChimeraX-RemoteControl: 1.0
ChimeraX-ResidueFit: 1.0
ChimeraX-RestServer: 1.1
ChimeraX-RNALayout: 1.0
ChimeraX-RotamerLibMgr: 2.0.1
ChimeraX-RotamerLibsDunbrack: 2.0
ChimeraX-RotamerLibsDynameomics: 2.0
ChimeraX-RotamerLibsRichardson: 2.0
ChimeraX-SaveCommand: 1.5
ChimeraX-SchemeMgr: 1.0
ChimeraX-SDF: 2.0
ChimeraX-Segger: 1.0
ChimeraX-Segment: 1.0
ChimeraX-SelInspector: 1.0
ChimeraX-SeqView: 2.4.6
ChimeraX-Shape: 1.0.1
ChimeraX-Shell: 1.0
ChimeraX-Shortcuts: 1.1
ChimeraX-ShowAttr: 1.0
ChimeraX-ShowSequences: 1.0
ChimeraX-SideView: 1.0
ChimeraX-Smiles: 2.1
ChimeraX-SmoothLines: 1.0
ChimeraX-SpaceNavigator: 1.0
ChimeraX-StdCommands: 1.6.1
ChimeraX-STL: 1.0
ChimeraX-Storm: 1.0
ChimeraX-Struts: 1.0
ChimeraX-Surface: 1.0
ChimeraX-SwapAA: 2.0
ChimeraX-SwapRes: 2.1
ChimeraX-TapeMeasure: 1.0
ChimeraX-Test: 1.0
ChimeraX-Toolbar: 1.1
ChimeraX-ToolshedUtils: 1.2
ChimeraX-Tug: 1.0
ChimeraX-UI: 1.13.7
ChimeraX-uniprot: 2.2
ChimeraX-UnitCell: 1.0
ChimeraX-ViewDockX: 1.0.1
ChimeraX-VIPERdb: 1.0
ChimeraX-Vive: 1.1
ChimeraX-VolumeMenu: 1.0
ChimeraX-VTK: 1.0
ChimeraX-WavefrontOBJ: 1.0
ChimeraX-WebCam: 1.0
ChimeraX-WebServices: 1.0
ChimeraX-Zone: 1.0
colorama: 0.4.4
comtypes: 1.1.10
cxservices: 1.1
cycler: 0.11.0
Cython: 0.29.24
decorator: 5.1.0
docutils: 0.17.1
filelock: 3.0.12
funcparserlib: 0.3.6
grako: 3.16.5
h5py: 3.6.0
html2text: 2020.1.16
idna: 3.3
ihm: 0.21
imagecodecs: 2021.4.28
imagesize: 1.3.0
ipykernel: 5.5.5
ipython: 7.23.1
ipython-genutils: 0.2.0
jedi: 0.18.0
Jinja2: 3.0.1
jupyter-client: 6.1.12
jupyter-core: 4.9.1
kiwisolver: 1.3.2
lxml: 4.6.3
lz4: 3.1.3
MarkupSafe: 2.0.1
matplotlib: 3.4.3
matplotlib-inline: 0.1.3
msgpack: 1.0.2
netCDF4: 1.5.7
networkx: 2.6.3
numexpr: 2.8.0
numpy: 1.21.2
openvr: 1.16.801
packaging: 21.3
ParmEd: 3.2.0
parso: 0.8.3
pickleshare: 0.7.5
Pillow: 8.3.2
pip: 21.2.4
pkginfo: 1.7.1
prompt-toolkit: 3.0.23
psutil: 5.8.0
pycollada: 0.7.1
pydicom: 2.1.2
Pygments: 2.10.0
PyOpenGL: 3.1.5
PyOpenGL-accelerate: 3.1.5
pyparsing: 3.0.6
PyQt5-commercial: 5.15.2
PyQt5-sip: 12.8.1
PyQtWebEngine-commercial: 5.15.2
python-dateutil: 2.8.2
pytz: 2021.3
pywin32: 228
pyzmq: 22.3.0
qtconsole: 5.1.1
QtPy: 1.11.3
RandomWords: 0.3.0
requests: 2.26.0
scipy: 1.7.1
setuptools: 57.5.0
sfftk-rw: 0.7.1
six: 1.16.0
snowballstemmer: 2.2.0
sortedcontainers: 2.4.0
Sphinx: 4.2.0
sphinx-autodoc-typehints: 1.12.0
sphinxcontrib-applehelp: 1.0.2
sphinxcontrib-blockdiag: 2.0.0
sphinxcontrib-devhelp: 1.0.2
sphinxcontrib-htmlhelp: 2.0.0
sphinxcontrib-jsmath: 1.0.1
sphinxcontrib-qthelp: 1.0.3
sphinxcontrib-serializinghtml: 1.1.5
suds-jurko: 0.6
tables: 3.6.1
tifffile: 2021.4.8
tinyarray: 1.2.3
tornado: 6.1
traitlets: 5.1.1
urllib3: 1.26.7
wcwidth: 0.2.5
webcolors: 1.11.1
wheel: 0.37.0
wheel-filename: 1.3.0
WMI: 1.5.1

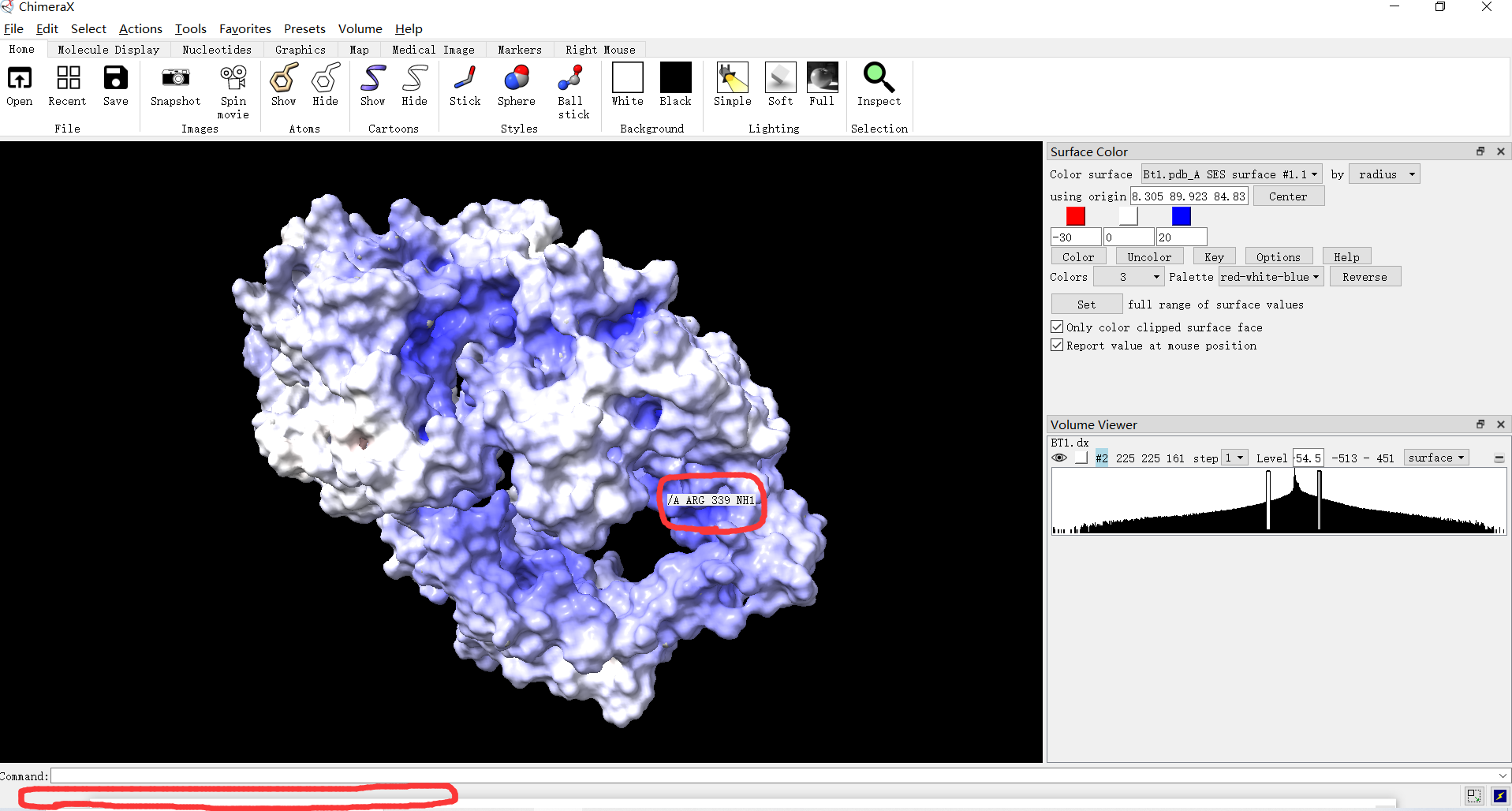

File attachment: QQ图片20220223084322.png

[pett]

Reported by Faye Chao

[Tom Goddard]

Your image has the surface color dialog set to color by radius and to color only clipped surfaces -- those settings obviously don't reflect the coloring in the graphics window.

Do some simple tests and report back to me. Open this PDB file

open 1a0m

Then hover the mouse over the ribbon. Does it report "chain A: alpha-conotoxin..." in the status line? If not then your status line does not work at all and that is probably a bug in your graphics driver. If it does show a message in the status line at the bottom of the window do the following test.

Run command

surface

Then use the Surface Color tool to color by radius and turn on the "Report value at mouse position" and hover the mouse over the surface.

If that does not work then I don't have an idea because it works on my Windows and Mac machines.

Report your results.

[Tom Goddard]

Also, note that when ChimeraX starts it warns you

"warning | Your computer has Intel graphics driver 7584 with a known bug that
causes all Qt user interface panels to be blank. ChimeraX can partially fix
this but may make some panel titlebars and edges black. Hopefully newer Intel
graphics drivers will fix this. "

So I would not be surprised if your buggy graphics driver is the problem.

[Tom Goddard]

Reporter replied that status line messages giving chain info do not appear. Appears status line does not work at all. They updated graphics driver and now it works.
