#860 closed defect (fixed)

silhouettes partly blot out selection outlines

Reported by: Elaine Meng Owned by: Tom Goddard
Priority: minor Milestone:
Component: Graphics Version:
Keywords: Cc:
Blocked By: Blocking:
Notify when closed: Platform: all
Project: ChimeraX

Description

Selection highlights are hard to see if silhouettes are shown (black silhouettes on black background changes selection outline from solid green line to dotted green line). I'm not sure if this rises to the level of a bug since the green is still visible, just less obvious. Compare attached images sil.png and nosil.png (with and without silhouettes).

There are also some extra selection lines on sil.png but that is a separate issue, probably only with zoomed-in spheres.

Attachments (2)

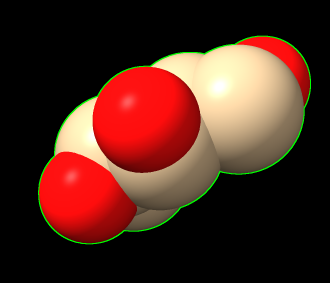

nosil.png​ (25.9 KB ) - added by Elaine Meng 8 years ago.
sil.png​ (26.3 KB ) - added by Elaine Meng 8 years ago.

Download all attachments as: .zip

Change History (3)

by Elaine Meng, 8 years ago

Attachment: nosil.png​ added

by Elaine Meng, 8 years ago

Attachment: sil.png​ added

comment:1 by Tom Goddard, 8 years ago

Resolution: → fixed
Status: assigned → closed

Fixed.

Silhouette edges were drawn on top of selection outlines. I've reversed that.
