RFE: EMDB-SFF transform

[pkorir@…]

The following bug report has been submitted:
Platform:        macOS-10.16-x86_64-i386-64bit
ChimeraX Version: 1.6.dev202301242251 (2023-01-24 22:51:10 UTC)
Description
To the best of my understanding, ChimeraX displays images and associated segmentations in physical space not image space. However, segmentations are performed in image space. EMDB-SFF uses the first transform in the transforms_list field (with id=0) as the image-to-physical transform. (https://emdb-empiar.github.io/EMDB-SFF/v0.8.0.dev1/segmentation_da_xsd.html#segmentation_transform_list)
I've tested with two files having the same segmentation but different values for transform 0 and they render the same.
Could you please implement this feature in ChimeraX? Just to clarify: what are the units of physical space in ChimeraX: Å or nm?

Log:
UCSF ChimeraX version: 1.6.dev202301242251 (2023-01-24)
© 2016-2023 Regents of the University of California. All rights reserved.
How to cite UCSF ChimeraX




OpenGL version: 4.1 ATI-4.9.51
OpenGL renderer: AMD Radeon Pro 560X OpenGL Engine
OpenGL vendor: ATI Technologies Inc.

Python: 3.9.11
Locale: UTF-8
Qt version: PyQt6 6.4.0, Qt 6.4.0
Qt runtime version: 6.4.2
Qt platform: cocoa
Hardware:

    Hardware Overview:

      Model Name: MacBook Pro
      Model Identifier: MacBookPro15,1
      Processor Name: 6-Core Intel Core i9
      Processor Speed: 2.9 GHz
      Number of Processors: 1
      Total Number of Cores: 6
      L2 Cache (per Core): 256 KB
      L3 Cache: 12 MB
      Hyper-Threading Technology: Enabled
      Memory: 32 GB
      System Firmware Version: 1916.80.2.0.0 (iBridge: 20.16.3045.0.0,0)
      OS Loader Version: 564.40.4~66

Software:

    System Software Overview:

      System Version: macOS 13.2 (22D49)
      Kernel Version: Darwin 22.3.0
      Time since boot: 1 day, 3 hours, 20 minutes

Graphics/Displays:

    Intel UHD Graphics 630:

      Chipset Model: Intel UHD Graphics 630
      Type: GPU
      Bus: Built-In
      VRAM (Dynamic, Max): 1536 MB
      Vendor: Intel
      Device ID: 0x3e9b
      Revision ID: 0x0000
      Automatic Graphics Switching: Supported
      gMux Version: 5.0.0
      Metal Support: Metal 3

    Radeon Pro 560X:

      Chipset Model: Radeon Pro 560X
      Type: GPU
      Bus: PCIe
      PCIe Lane Width: x8
      VRAM (Total): 4 GB
      Vendor: AMD (0x1002)
      Device ID: 0x67ef
      Revision ID: 0x00c2
      ROM Revision: 113-C980AL-075
      VBIOS Version: 113-C97501U-005
      EFI Driver Version: 01.A1.075
      Automatic Graphics Switching: Supported
      gMux Version: 5.0.0
      Metal Support: Metal 3
      Displays:
        Color LCD:
          Display Type: Built-In Retina LCD
          Resolution: 2880 x 1800 Retina
          Framebuffer Depth: 30-Bit Color (ARGB2101010)
          Main Display: Yes
          Mirror: Off
          Online: Yes
          Automatically Adjust Brightness: Yes
          Connection Type: Internal
        BenQ PD3200U:
          Resolution: 6016 x 3384
          UI Looks like: 3008 x 1692 @ 60.00Hz
          Framebuffer Depth: 30-Bit Color (ARGB2101010)
          Display Serial Number: N8K00404019
          Mirror: Off
          Online: Yes
          Rotation: Supported
          Connection Type: Thunderbolt/DisplayPort


Installed Packages:
    alabaster: 0.7.13
    appdirs: 1.4.4
    appnope: 0.1.3
    asttokens: 2.2.1
    Babel: 2.11.0
    backcall: 0.2.0
    blockdiag: 3.0.0
    build: 0.8.0
    certifi: 2021.10.8
    cftime: 1.6.2
    charset-normalizer: 2.1.1
    ChimeraX-AddCharge: 1.5.8
    ChimeraX-AddH: 2.2.3
    ChimeraX-AlignmentAlgorithms: 2.0.1
    ChimeraX-AlignmentHdrs: 3.3.1
    ChimeraX-AlignmentMatrices: 2.1
    ChimeraX-Alignments: 2.8
    ChimeraX-AlphaFold: 1.0
    ChimeraX-AltlocExplorer: 1.0.3
    ChimeraX-AmberInfo: 1.0
    ChimeraX-Arrays: 1.1
    ChimeraX-Atomic: 1.43.6
    ChimeraX-AtomicLibrary: 10.0.2
    ChimeraX-AtomSearch: 2.0.1
    ChimeraX-AxesPlanes: 2.3.2
    ChimeraX-BasicActions: 1.1.2
    ChimeraX-BILD: 1.0
    ChimeraX-BlastProtein: 2.1.2
    ChimeraX-BondRot: 2.0.1
    ChimeraX-BugReporter: 1.0.1
    ChimeraX-BuildStructure: 2.7.2
    ChimeraX-Bumps: 1.0
    ChimeraX-BundleBuilder: 1.2
    ChimeraX-ButtonPanel: 1.0.1
    ChimeraX-CageBuilder: 1.0.1
    ChimeraX-CellPack: 1.0
    ChimeraX-Centroids: 1.3.2
    ChimeraX-ChangeChains: 1.0.2
    ChimeraX-CheckWaters: 1.3.1
    ChimeraX-ChemGroup: 2.0.1
    ChimeraX-Clashes: 2.2.4
    ChimeraX-ColorActions: 1.0.3
    ChimeraX-ColorGlobe: 1.0
    ChimeraX-ColorKey: 1.5.3
    ChimeraX-CommandLine: 1.2.5
    ChimeraX-ConnectStructure: 2.0.1
    ChimeraX-Contacts: 1.0.1
    ChimeraX-Core: 1.6.dev202301242251
    ChimeraX-CoreFormats: 1.1
    ChimeraX-coulombic: 1.4.2
    ChimeraX-Crosslinks: 1.0
    ChimeraX-Crystal: 1.0
    ChimeraX-CrystalContacts: 1.0.1
    ChimeraX-DataFormats: 1.2.3
    ChimeraX-Dicom: 1.1
    ChimeraX-DistMonitor: 1.3.2
    ChimeraX-DockPrep: 1.1
    ChimeraX-Dssp: 2.0
    ChimeraX-EMDB-SFF: 1.0
    ChimeraX-ESMFold: 1.0
    ChimeraX-ExperimentalCommands: 1.0
    ChimeraX-FileHistory: 1.0.1
    ChimeraX-FunctionKey: 1.0.1
    ChimeraX-Geometry: 1.2.1
    ChimeraX-gltf: 1.0
    ChimeraX-Graphics: 1.1.1
    ChimeraX-Hbonds: 2.4
    ChimeraX-Help: 1.2.1
    ChimeraX-HKCage: 1.3
    ChimeraX-IHM: 1.1
    ChimeraX-ImageFormats: 1.2
    ChimeraX-IMOD: 1.0
    ChimeraX-IO: 1.0.1
    ChimeraX-ItemsInspection: 1.0.1
    ChimeraX-Label: 1.1.7
    ChimeraX-ListInfo: 1.1.1
    ChimeraX-Log: 1.1.5
    ChimeraX-LookingGlass: 1.1
    ChimeraX-Maestro: 1.8.2
    ChimeraX-Map: 1.1.4
    ChimeraX-MapData: 2.0
    ChimeraX-MapEraser: 1.0.1
    ChimeraX-MapFilter: 2.0.1
    ChimeraX-MapFit: 2.0
    ChimeraX-MapSeries: 2.1.1
    ChimeraX-Markers: 1.0.1
    ChimeraX-Mask: 1.0.2
    ChimeraX-MatchMaker: 2.0.11
    ChimeraX-MDcrds: 2.6
    ChimeraX-MedicalToolbar: 1.0.2
    ChimeraX-Meeting: 1.0.1
    ChimeraX-MLP: 1.1.1
    ChimeraX-mmCIF: 2.11
    ChimeraX-MMTF: 2.2
    ChimeraX-Modeller: 1.5.8
    ChimeraX-ModelPanel: 1.3.6
    ChimeraX-ModelSeries: 1.0.1
    ChimeraX-Mol2: 2.0
    ChimeraX-Mole: 1.0
    ChimeraX-Morph: 1.0.2
    ChimeraX-MouseModes: 1.2
    ChimeraX-Movie: 1.0
    ChimeraX-Neuron: 1.0
    ChimeraX-Nucleotides: 2.0.3
    ChimeraX-OpenCommand: 1.10
    ChimeraX-PDB: 2.6.12
    ChimeraX-PDBBio: 1.0
    ChimeraX-PDBLibrary: 1.0.2
    ChimeraX-PDBMatrices: 1.0
    ChimeraX-PickBlobs: 1.0.1
    ChimeraX-Positions: 1.0
    ChimeraX-PresetMgr: 1.1
    ChimeraX-PubChem: 2.1
    ChimeraX-ReadPbonds: 1.0.1
    ChimeraX-Registration: 1.1.1
    ChimeraX-RemoteControl: 1.0
    ChimeraX-RenderByAttr: 1.0
    ChimeraX-RenumberResidues: 1.1
    ChimeraX-ResidueFit: 1.0.1
    ChimeraX-RestServer: 1.1
    ChimeraX-RNALayout: 1.0
    ChimeraX-RotamerLibMgr: 3.0
    ChimeraX-RotamerLibsDunbrack: 2.0
    ChimeraX-RotamerLibsDynameomics: 2.0
    ChimeraX-RotamerLibsRichardson: 2.0
    ChimeraX-SaveCommand: 1.5.1
    ChimeraX-SchemeMgr: 1.0
    ChimeraX-SDF: 2.0.1
    ChimeraX-Segger: 1.0
    ChimeraX-Segment: 1.0.1
    ChimeraX-SelInspector: 1.0
    ChimeraX-SeqView: 2.8.1
    ChimeraX-Shape: 1.0.1
    ChimeraX-Shell: 1.0.1
    ChimeraX-Shortcuts: 1.1.1
    ChimeraX-ShowSequences: 1.0.1
    ChimeraX-SideView: 1.0.1
    ChimeraX-Smiles: 2.1
    ChimeraX-SmoothLines: 1.0
    ChimeraX-SpaceNavigator: 1.0
    ChimeraX-StdCommands: 1.10.1
    ChimeraX-STL: 1.0.1
    ChimeraX-Storm: 1.0
    ChimeraX-StructMeasure: 1.1.1
    ChimeraX-Struts: 1.0.1
    ChimeraX-Surface: 1.0.1
    ChimeraX-SwapAA: 2.0.1
    ChimeraX-SwapRes: 2.2
    ChimeraX-TapeMeasure: 1.0
    ChimeraX-Test: 1.0
    ChimeraX-Toolbar: 1.1.2
    ChimeraX-ToolshedUtils: 1.2.1
    ChimeraX-Topography: 1.0
    ChimeraX-Tug: 1.0.1
    ChimeraX-UI: 1.26
    ChimeraX-uniprot: 2.2.2
    ChimeraX-UnitCell: 1.0.1
    ChimeraX-ViewDockX: 1.1.6
    ChimeraX-VIPERdb: 1.0
    ChimeraX-Vive: 1.1
    ChimeraX-VolumeMenu: 1.0.1
    ChimeraX-VTK: 1.0
    ChimeraX-WavefrontOBJ: 1.0
    ChimeraX-WebCam: 1.0.2
    ChimeraX-WebServices: 1.1.1
    ChimeraX-Zone: 1.0.1
    colorama: 0.4.5
    comm: 0.1.2
    contourpy: 1.0.7
    cxservices: 1.2.2
    cycler: 0.11.0
    Cython: 0.29.32
    debugpy: 1.6.6
    decorator: 5.1.1
    docutils: 0.19
    entrypoints: 0.4
    executing: 1.2.0
    filelock: 3.7.1
    fonttools: 4.38.0
    funcparserlib: 1.0.1
    grako: 3.16.5
    h5py: 3.8.0
    html2text: 2020.1.16
    idna: 3.4
    ihm: 0.35
    imagecodecs: 2022.9.26
    imagesize: 1.4.1
    importlib-metadata: 6.0.0
    ipykernel: 6.19.2
    ipython: 8.7.0
    ipython-genutils: 0.2.0
    jedi: 0.18.2
    Jinja2: 3.1.2
    jupyter-client: 7.4.8
    jupyter-core: 5.1.5
    kiwisolver: 1.4.4
    line-profiler: 3.5.1
    lxml: 4.9.1
    lz4: 4.0.2
    MarkupSafe: 2.1.2
    matplotlib: 3.6.2
    matplotlib-inline: 0.1.6
    msgpack: 1.0.4
    nest-asyncio: 1.5.6
    netCDF4: 1.6.0
    networkx: 2.8.8
    numexpr: 2.8.4
    numpy: 1.23.5
    openvr: 1.23.701
    packaging: 21.3
    ParmEd: 3.4.3
    parso: 0.8.3
    pep517: 0.13.0
    pexpect: 4.8.0
    pickleshare: 0.7.5
    Pillow: 9.3.0
    pip: 22.2.2
    pkginfo: 1.8.3
    platformdirs: 2.6.2
    prompt-toolkit: 3.0.36
    psutil: 5.9.4
    ptyprocess: 0.7.0
    pure-eval: 0.2.2
    pycollada: 0.7.2
    pydicom: 2.3.0
    Pygments: 2.12.0
    PyOpenGL: 3.1.5
    PyOpenGL-accelerate: 3.1.5
    pyparsing: 3.0.9
    PyQt6-commercial: 6.4.0
    PyQt6-Qt6: 6.4.2
    PyQt6-sip: 13.4.0
    PyQt6-WebEngine-commercial: 6.4.0
    PyQt6-WebEngine-Qt6: 6.4.2
    python-dateutil: 2.8.2
    pytz: 2022.7.1
    pyzmq: 25.0.0
    qtconsole: 5.4.0
    QtPy: 2.3.0
    RandomWords: 0.4.0
    requests: 2.28.1
    scipy: 1.9.3
    setuptools: 65.1.1
    setuptools-scm: 7.0.5
    sfftk-rw: 0.7.2
    six: 1.16.0
    snowballstemmer: 2.2.0
    sortedcontainers: 2.4.0
    Sphinx: 5.1.1
    sphinx-autodoc-typehints: 1.19.1
    sphinxcontrib-applehelp: 1.0.4
    sphinxcontrib-blockdiag: 3.0.0
    sphinxcontrib-devhelp: 1.0.2
    sphinxcontrib-htmlhelp: 2.0.0
    sphinxcontrib-jsmath: 1.0.1
    sphinxcontrib-qthelp: 1.0.3
    sphinxcontrib-serializinghtml: 1.1.5
    stack-data: 0.6.2
    tables: 3.7.0
    tifffile: 2022.10.10
    tinyarray: 1.2.4
    tomli: 2.0.1
    tornado: 6.2
    traitlets: 5.8.0
    typing-extensions: 4.4.0
    urllib3: 1.26.14
    wcwidth: 0.2.6
    webcolors: 1.12
    wheel: 0.37.1
    wheel-filename: 1.4.1
    zipp: 3.11.0

[Eric Pettersen]

Reported by Paul Korir

[Tom Goddard]

From: Paul Korir <pkorir@ebi.ac.uk>
Subject: Re: [chimerax-users] EMDB-SFF segmentation file: application of transform 0 for image-to-physical projection
Date: February 2, 2023 at 5:49:17 AM PST
To: Tom Goddard

Thanks, Tom. Once you have a build ready let me know and I'll test on the data I have.

Hi Paul,

The current ChimeraX EMDB SFF reader tries to apply the correct transformation, but I guess you have a case where it does not work. It would help to have the SFF file and the density map it is supposed to align to that demonstrates the problem. With that it should be very easy to fix.

Tom

[pkorir@…]

Hi Tom,

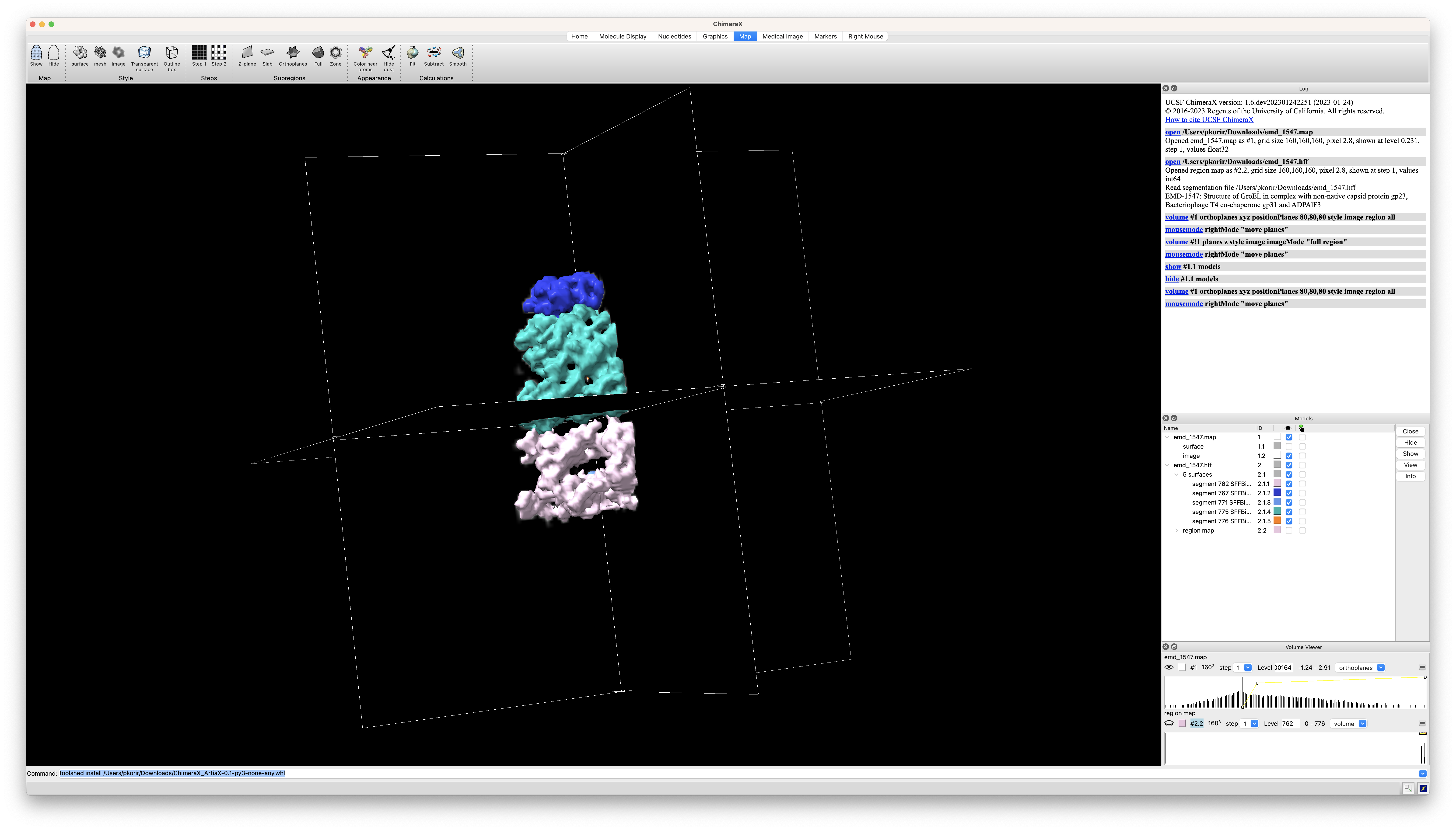

OK. I can confirm that it works (attached screenshot).
