Auto-style on 4 chain 120,000 atoms looks bad

[goddard@…]

The following bug report has been submitted:
Platform:        macOS-12.5.1-arm64-arm-64bit
ChimeraX Version: 1.5.dev202208311802 (2022-08-31 18:02:52 UTC)
Description
Auto-style on this 120,000 four chain ryanodine structure 7tdh seems not too useful, all stick, no distinct chain colors.  This is following the documented auto-style rules but I think this should be improved.  It looks much better using the 200000-1000000 atom rules, sphere colored by chain.

Log:
UCSF ChimeraX version: 1.5.dev202208311802 (2022-08-31)
© 2016-2022 Regents of the University of California. All rights reserved.
How to cite UCSF ChimeraX

> open 7tdh format mmcif fromDatabase pdb

7tdh title:
Rabbit RyR1 with AMP-PCP and high Ca2+ embedded in nanodisc in open
conformation [more info...]

Chain information for 7tdh #1
---
Chain | Description | UniProt
A B C D | Ryanodine receptor 1,Ryanodine receptor 1,RyR1 | RYR1_RABIT

Non-standard residues in 7tdh #1
---
ACP — phosphomethylphosphonic acid adenylate ester (adenosine-5'-[β,
γ-methylene]triphosphate)
CA — calcium ion
ZN — zinc ion


> view orient

[Repeated 1 time(s)]

> save /Users/goddard/Desktop/image1.png supersample 3

> select #1

117532 atoms, 119752 bonds, 100 pseudobonds, 16676 residues, 3 models selected

> select clear

> show cartoons

> hide atoms

> color bypolymer

> style sphere

Changed 117532 atom styles

> show atoms

> hide cartoons

> color bychain

> show cartoons

> hide atoms

> show atoms

> style sphere

Changed 117532 atom styles

> lighting soft




OpenGL version: 4.1 Metal - 76.3
OpenGL renderer: Apple M1 Max
OpenGL vendor: Apple

Python: 3.9.11
Locale: UTF-8
Qt version: PyQt6 6.3.1, Qt 6.3.1
Qt runtime version: 6.3.1
Qt platform: cocoa
Hardware:

    Hardware Overview:

      Model Name: MacBook Pro
      Model Identifier: MacBookPro18,2
      Chip: Apple M1 Max
      Total Number of Cores: 10 (8 performance and 2 efficiency)
      Memory: 32 GB
      System Firmware Version: 7459.141.1
      OS Loader Version: 7459.141.1

Software:

    System Software Overview:

      System Version: macOS 12.5.1 (21G83)
      Kernel Version: Darwin 21.6.0
      Time since boot: 10 days 12:42

Graphics/Displays:

    Apple M1 Max:

      Chipset Model: Apple M1 Max
      Type: GPU
      Bus: Built-In
      Total Number of Cores: 32
      Vendor: Apple (0x106b)
      Metal Family: Supported, Metal GPUFamily Apple 7
      Displays:
        Color LCD:
          Display Type: Built-in Liquid Retina XDR Display
          Resolution: 3456 x 2234 Retina
          Main Display: Yes
          Mirror: Off
          Online: Yes
          Automatically Adjust Brightness: No
          Connection Type: Internal


Installed Packages:
    alabaster: 0.7.12
    appdirs: 1.4.4
    appnope: 0.1.3
    asttokens: 2.0.8
    Babel: 2.10.3
    backcall: 0.2.0
    blockdiag: 3.0.0
    build: 0.8.0
    certifi: 2021.10.8
    cftime: 1.6.1
    charset-normalizer: 2.1.1
    ChimeraX-AddCharge: 1.4
    ChimeraX-AddH: 2.2
    ChimeraX-AlignmentAlgorithms: 2.0
    ChimeraX-AlignmentHdrs: 3.2.1
    ChimeraX-AlignmentMatrices: 2.0
    ChimeraX-Alignments: 2.5.2
    ChimeraX-AlphaFold: 1.0
    ChimeraX-AltlocExplorer: 1.0.3
    ChimeraX-AmberInfo: 1.0
    ChimeraX-Arrays: 1.0
    ChimeraX-ArtiaX: 0.1
    ChimeraX-Atomic: 1.41.2
    ChimeraX-AtomicLibrary: 7.0.2
    ChimeraX-AtomSearch: 2.0.1
    ChimeraX-AxesPlanes: 2.3
    ChimeraX-BasicActions: 1.1.2
    ChimeraX-BILD: 1.0
    ChimeraX-BlastProtein: 2.1.2
    ChimeraX-BondRot: 2.0.1
    ChimeraX-BugReporter: 1.0.1
    ChimeraX-BuildStructure: 2.7.1
    ChimeraX-Bumps: 1.0
    ChimeraX-BundleBuilder: 1.2
    ChimeraX-ButtonPanel: 1.0.1
    ChimeraX-CageBuilder: 1.0.1
    ChimeraX-CellPack: 1.0
    ChimeraX-Centroids: 1.3.1
    ChimeraX-ChangeChains: 1.0
    ChimeraX-CheckWaters: 1.1.1
    ChimeraX-ChemGroup: 2.0
    ChimeraX-Clashes: 2.2.4
    ChimeraX-ColorActions: 1.0.1
    ChimeraX-ColorGlobe: 1.0
    ChimeraX-ColorKey: 1.5.2
    ChimeraX-CommandLine: 1.2.4
    ChimeraX-ConnectStructure: 2.0.1
    ChimeraX-Contacts: 1.0.1
    ChimeraX-Core: 1.5.dev202208311802
    ChimeraX-CoreFormats: 1.1
    ChimeraX-coulombic: 1.3.2
    ChimeraX-Crosslinks: 1.0
    ChimeraX-cryoDRGN: 1.0
    ChimeraX-Crystal: 1.0
    ChimeraX-CrystalContacts: 1.0.1
    ChimeraX-DataFormats: 1.2.2
    ChimeraX-Dicom: 1.1
    ChimeraX-DistMonitor: 1.3
    ChimeraX-DockPrep: 1.0
    ChimeraX-Dssp: 2.0
    ChimeraX-EMDB-SFF: 1.0
    ChimeraX-ExperimentalCommands: 1.0
    ChimeraX-FileHistory: 1.0.1
    ChimeraX-FunctionKey: 1.0.1
    ChimeraX-Geometry: 1.2
    ChimeraX-gltf: 1.0
    ChimeraX-Graphics: 1.1
    ChimeraX-Hbonds: 2.3.1
    ChimeraX-Help: 1.2.1
    ChimeraX-HKCage: 1.3
    ChimeraX-IHM: 1.1
    ChimeraX-ImageFormats: 1.2
    ChimeraX-IMOD: 1.0
    ChimeraX-IO: 1.0.1
    ChimeraX-ItemsInspection: 1.0.1
    ChimeraX-Label: 1.1.6
    ChimeraX-ListInfo: 1.1.1
    ChimeraX-Log: 1.1.5
    ChimeraX-LookingGlass: 1.1
    ChimeraX-Maestro: 1.8.1
    ChimeraX-Map: 1.1.1
    ChimeraX-MapData: 2.0
    ChimeraX-MapEraser: 1.0.1
    ChimeraX-MapFilter: 2.0
    ChimeraX-MapFit: 2.0
    ChimeraX-MapSeries: 2.1.1
    ChimeraX-Markers: 1.0.1
    ChimeraX-Mask: 1.0.1
    ChimeraX-MatchMaker: 2.0.6
    ChimeraX-MDcrds: 2.6
    ChimeraX-MedicalToolbar: 1.0.2
    ChimeraX-Meeting: 1.0.1
    ChimeraX-MLP: 1.1
    ChimeraX-mmCIF: 2.7
    ChimeraX-MMTF: 2.1
    ChimeraX-Modeller: 1.5.6
    ChimeraX-ModelPanel: 1.3.6
    ChimeraX-ModelSeries: 1.0.1
    ChimeraX-Mol2: 2.0
    ChimeraX-Mole: 1.0
    ChimeraX-Morph: 1.0
    ChimeraX-MouseModes: 1.1.1
    ChimeraX-Movie: 1.0
    ChimeraX-Neuron: 1.0
    ChimeraX-Nucleotides: 2.0.3
    ChimeraX-OpenCommand: 1.9.1
    ChimeraX-PDB: 2.6.7
    ChimeraX-PDBBio: 1.0
    ChimeraX-PDBLibrary: 1.0.2
    ChimeraX-PDBMatrices: 1.0
    ChimeraX-PickBlobs: 1.0.1
    ChimeraX-Positions: 1.0
    ChimeraX-PresetMgr: 1.1
    ChimeraX-PubChem: 2.1
    ChimeraX-ReadPbonds: 1.0.1
    ChimeraX-Registration: 1.1.1
    ChimeraX-RemoteControl: 1.0
    ChimeraX-RenumberResidues: 1.1
    ChimeraX-ResidueFit: 1.0.1
    ChimeraX-RestServer: 1.1
    ChimeraX-RNALayout: 1.0
    ChimeraX-RotamerLibMgr: 2.0.1
    ChimeraX-RotamerLibsDunbrack: 2.0
    ChimeraX-RotamerLibsDynameomics: 2.0
    ChimeraX-RotamerLibsRichardson: 2.0
    ChimeraX-SaveCommand: 1.5.1
    ChimeraX-SchemeMgr: 1.0
    ChimeraX-SDF: 2.0
    ChimeraX-Segger: 1.0
    ChimeraX-Segment: 1.0
    ChimeraX-SelInspector: 1.0
    ChimeraX-SeqView: 2.7.2
    ChimeraX-Shape: 1.0.1
    ChimeraX-Shell: 1.0.1
    ChimeraX-Shortcuts: 1.1.1
    ChimeraX-ShowSequences: 1.0.1
    ChimeraX-SideView: 1.0.1
    ChimeraX-Smiles: 2.1
    ChimeraX-SmoothLines: 1.0
    ChimeraX-SpaceNavigator: 1.0
    ChimeraX-StdCommands: 1.9
    ChimeraX-STL: 1.0
    ChimeraX-Storm: 1.0
    ChimeraX-StructMeasure: 1.1
    ChimeraX-Struts: 1.0.1
    ChimeraX-Surface: 1.0
    ChimeraX-SwapAA: 2.0.1
    ChimeraX-SwapRes: 2.1.3
    ChimeraX-TapeMeasure: 1.0
    ChimeraX-Test: 1.0
    ChimeraX-Toolbar: 1.1.2
    ChimeraX-ToolshedUtils: 1.2.1
    ChimeraX-Tug: 1.0.1
    ChimeraX-UI: 1.24
    ChimeraX-uniprot: 2.2.1
    ChimeraX-UnitCell: 1.0.1
    ChimeraX-ViewDockX: 1.1.3
    ChimeraX-VIPERdb: 1.0
    ChimeraX-Vive: 1.1
    ChimeraX-VolumeMenu: 1.0.1
    ChimeraX-VTK: 1.0
    ChimeraX-WavefrontOBJ: 1.0
    ChimeraX-WebCam: 1.0.1
    ChimeraX-WebServices: 1.1.0
    ChimeraX-Zone: 1.0.1
    colorama: 0.4.5
    cxservices: 1.2
    cycler: 0.11.0
    Cython: 0.29.32
    debugpy: 1.6.3
    decorator: 5.1.1
    docutils: 0.19
    entrypoints: 0.4
    executing: 1.0.0
    filelock: 3.7.1
    fonttools: 4.37.1
    funcparserlib: 1.0.0
    grako: 3.16.5
    h5py: 3.7.0
    html2text: 2020.1.16
    idna: 3.3
    ihm: 0.33
    imagecodecs: 2022.2.22
    imagesize: 1.4.1
    importlib-metadata: 4.12.0
    ipykernel: 6.15.1
    ipython: 8.4.0
    ipython-genutils: 0.2.0
    jedi: 0.18.1
    Jinja2: 3.1.2
    jupyter-client: 7.3.4
    jupyter-core: 4.11.1
    kiwisolver: 1.4.4
    line-profiler: 3.5.1
    lxml: 4.9.1
    lz4: 4.0.2
    MarkupSafe: 2.1.1
    matplotlib: 3.5.2
    matplotlib-inline: 0.1.6
    msgpack: 1.0.4
    nest-asyncio: 1.5.5
    netCDF4: 1.6.0
    networkx: 2.8.5
    numexpr: 2.8.3
    numpy: 1.23.1
    openvr: 1.23.701
    packaging: 21.3
    pandas: 1.4.3
    ParmEd: 3.4.3
    parso: 0.8.3
    pep517: 0.13.0
    pexpect: 4.8.0
    pickleshare: 0.7.5
    Pillow: 9.2.0
    pip: 22.2.1
    pkginfo: 1.8.3
    prompt-toolkit: 3.0.30
    psutil: 5.9.1
    ptyprocess: 0.7.0
    pure-eval: 0.2.2
    pycollada: 0.7.2
    pydicom: 2.3.0
    Pygments: 2.12.0
    PyOpenGL: 3.1.5
    PyOpenGL-accelerate: 3.1.5
    pyparsing: 3.0.9
    PyQt6: 6.3.1
    PyQt6-Qt6: 6.3.1
    PyQt6-sip: 13.4.0
    PyQt6-WebEngine: 6.3.1
    PyQt6-WebEngine-Qt6: 6.3.1
    python-dateutil: 2.8.2
    pytz: 2022.2.1
    pyzmq: 23.2.1
    qtconsole: 5.3.1
    QtPy: 2.2.0
    RandomWords: 0.4.0
    requests: 2.28.1
    scipy: 1.9.0
    Send2Trash: 1.8.0
    setuptools: 63.3.0
    sfftk-rw: 0.7.2
    six: 1.16.0
    snowballstemmer: 2.2.0
    sortedcontainers: 2.4.0
    Sphinx: 5.1.1
    sphinx-autodoc-typehints: 1.19.1
    sphinxcontrib-applehelp: 1.0.2
    sphinxcontrib-blockdiag: 3.0.0
    sphinxcontrib-devhelp: 1.0.2
    sphinxcontrib-htmlhelp: 2.0.0
    sphinxcontrib-jsmath: 1.0.1
    sphinxcontrib-qthelp: 1.0.3
    sphinxcontrib-serializinghtml: 1.1.5
    stack-data: 0.5.0
    starfile: 0.4.11
    superqt: 0.3.3
    tables: 3.7.0
    tifffile: 2022.7.31
    tinyarray: 1.2.4
    tomli: 2.0.1
    tornado: 6.2
    traitlets: 5.3.0
    typing-extensions: 4.3.0
    urllib3: 1.26.12
    wcwidth: 0.2.5
    webcolors: 1.12
    wheel: 0.37.1
    wheel-filename: 1.4.1
    zipp: 3.8.1

[goddard@…]

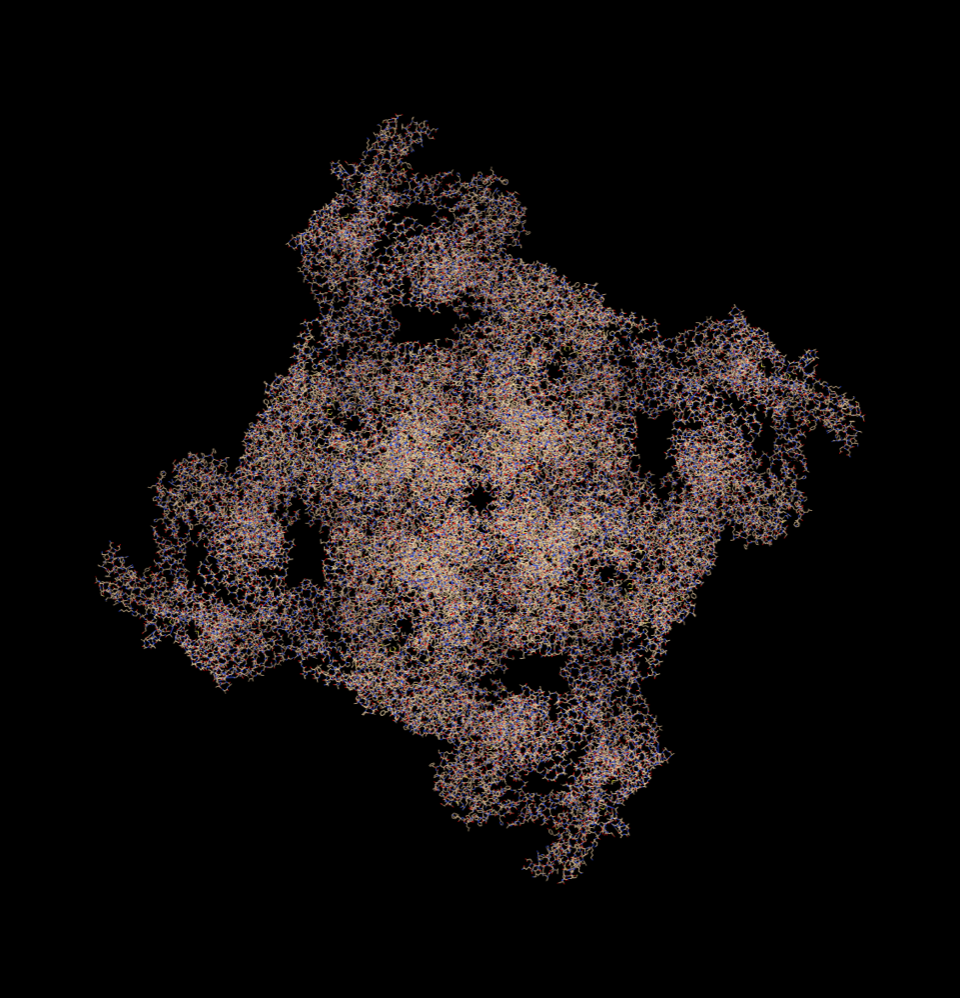

Here is what it looks like by default, and what it looks like with the >200,000 atom autostyle.

[goddard@…]

Added by email2trac

[goddard@…]

Added by email2trac

[Eric Pettersen]

Well, the auto styling "rules" are just heuristics and are meant to be tweaked for scenarios where they don't work well. I'll see what I can do.

[Eric Pettersen]

The ribbon upper limit that Greg added for performance reasons leaves structures < 200,000 atoms but exceeding the ribbon threshold depicted as just sticks, which looks terrible. Changed the heuristic so that such structures get kicked up into the space-filling spheres preset.
