#673 closed defect (fixed)
slanted tube helix 1www /w:5-9
| Reported by: | Elaine Meng | Owned by: | Conrad Huang |
|---|---|---|---|
| Priority: | major | Milestone: | |
| Component: | Depiction | Version: | |
| Keywords: | Cc: | ||
| Blocked By: | Blocking: | ||
| Notify when closed: | Platform: | all | |
| Project: | ChimeraX |
Description

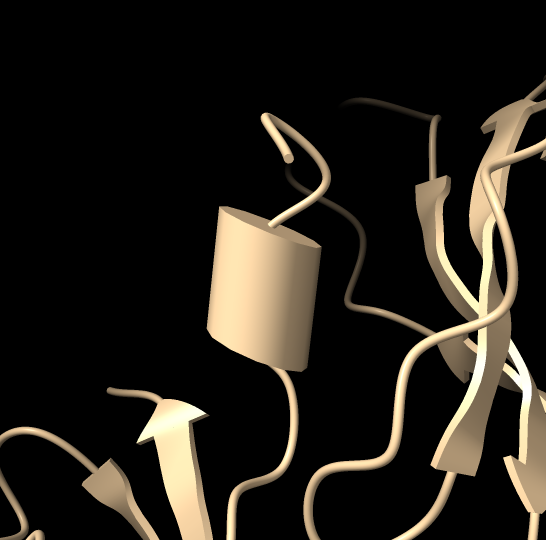

By "slanted" I mean the tube end faces are not normal to the long axis... image attached.
open 1www
car s modeh tube
view /w:5-9
Attachments (1)
Change History (2)
by , 8 years ago
| Attachment: | slanted-tube.png added |
|---|
comment:1 by , 8 years ago
| Resolution: | → fixed |
|---|---|
| Status: | assigned → closed |
Note:
See TracTickets
for help on using tickets.
Fixed in d12e9ba. The projection of the atom coordinates along the cylinder axis is out of order for the offending helix. Unfortunately, the normal calculation assumes that the order of the projected cylinder centers match the atomic coordinates order. The slant was the result of using the mismatched center/atom coordinates.
