AlphaFold PAE domains should exclude disordered regions

[goddard@…]

The following bug report has been submitted:
Platform:        macOS-12.3.1-arm64-arm-64bit
ChimeraX Version: 1.4.dev202203271748 (2022-03-27 17:48:18 UTC)
Description
AlphaFold PAE domain coloring often groups long disordered regions  (100 disordered residues or more) with regions that have secondary structure.  It would be nice if those long disordered regions were not part of real domains.  One idea for doing this would be to not put residues in domains if their pLDDT score is below a some threshold (e.g. 70).

Log:
UCSF ChimeraX version: 1.4.dev202203271748 (2022-03-27)
© 2016-2022 Regents of the University of California. All rights reserved.
How to cite UCSF ChimeraX

> alphafold fetch BCR_HUMAN

Chain information for AlphaFold BCR_HUMAN #1
---
Chain | Description | UniProt
A | Breakpoint cluster region protein | BCR_HUMAN


> alphafold pae #1 uniprotId BCR_HUMAN colorDomains true




OpenGL version: 4.1 Metal - 76.3
OpenGL renderer: Apple M1 Max
OpenGL vendor: Apple

Locale: UTF-8
Qt version: PyQt6 6.2.3, Qt 6.2.3
Qt platform: cocoa
Hardware:

    Hardware Overview:

      Model Name: MacBook Pro
      Model Identifier: MacBookPro18,2
      Chip: Apple M1 Max
      Total Number of Cores: 10 (8 performance and 2 efficiency)
      Memory: 32 GB
      System Firmware Version: 7459.101.3
      OS Loader Version: 7459.101.3

Software:

    System Software Overview:

      System Version: macOS 12.3.1 (21E258)
      Kernel Version: Darwin 21.4.0
      Time since boot: 6 days 8:32

Graphics/Displays:

    Apple M1 Max:

      Chipset Model: Apple M1 Max
      Type: GPU
      Bus: Built-In
      Total Number of Cores: 32
      Vendor: Apple (0x106b)
      Metal Family: Supported, Metal GPUFamily Apple 7
      Displays:
        Color LCD:
          Display Type: Built-in Liquid Retina XDR Display
          Resolution: 3456 x 2234 Retina
          Main Display: Yes
          Mirror: Off
          Online: Yes
          Automatically Adjust Brightness: No
          Connection Type: Internal


Installed Packages:
    alabaster: 0.7.12
    appdirs: 1.4.4
    appnope: 0.1.2
    Babel: 2.9.1
    backcall: 0.2.0
    blockdiag: 3.0.0
    certifi: 2021.10.8
    charset-normalizer: 2.0.12
    ChimeraX-AddCharge: 1.2.3
    ChimeraX-AddH: 2.1.11
    ChimeraX-AlignmentAlgorithms: 2.0
    ChimeraX-AlignmentHdrs: 3.2.1
    ChimeraX-AlignmentMatrices: 2.0
    ChimeraX-Alignments: 2.3
    ChimeraX-AlphaFold: 1.0
    ChimeraX-AltlocExplorer: 1.0.1
    ChimeraX-AmberInfo: 1.0
    ChimeraX-Arrays: 1.0
    ChimeraX-Atomic: 1.36.3
    ChimeraX-AtomicLibrary: 6.1.1
    ChimeraX-AtomSearch: 2.0.1
    ChimeraX-AxesPlanes: 2.1
    ChimeraX-BasicActions: 1.1
    ChimeraX-BILD: 1.0
    ChimeraX-BlastProtein: 2.0
    ChimeraX-BondRot: 2.0
    ChimeraX-BugReporter: 1.0
    ChimeraX-BuildStructure: 2.6.1
    ChimeraX-Bumps: 1.0
    ChimeraX-BundleBuilder: 1.1
    ChimeraX-ButtonPanel: 1.0
    ChimeraX-CageBuilder: 1.0
    ChimeraX-CellPack: 1.0
    ChimeraX-Centroids: 1.2
    ChimeraX-ChemGroup: 2.0
    ChimeraX-Clashes: 2.2.2
    ChimeraX-ColorActions: 1.0
    ChimeraX-ColorGlobe: 1.0
    ChimeraX-ColorKey: 1.5.1
    ChimeraX-CommandLine: 1.2.2
    ChimeraX-ConnectStructure: 2.0.1
    ChimeraX-Contacts: 1.0
    ChimeraX-Core: 1.4.dev202203271748
    ChimeraX-CoreFormats: 1.1
    ChimeraX-coulombic: 1.3.2
    ChimeraX-Crosslinks: 1.0
    ChimeraX-Crystal: 1.0
    ChimeraX-CrystalContacts: 1.0
    ChimeraX-DataFormats: 1.2.2
    ChimeraX-Dicom: 1.1
    ChimeraX-DistMonitor: 1.1.5
    ChimeraX-Dssp: 2.0
    ChimeraX-ExperimentalCommands: 1.0
    ChimeraX-FileHistory: 1.0
    ChimeraX-FunctionKey: 1.0
    ChimeraX-Geometry: 1.1
    ChimeraX-gltf: 1.0
    ChimeraX-Graphics: 1.1
    ChimeraX-Hbonds: 2.1.2
    ChimeraX-Help: 1.2
    ChimeraX-HKCage: 1.3
    ChimeraX-IHM: 1.1
    ChimeraX-ImageFormats: 1.2
    ChimeraX-IMOD: 1.0
    ChimeraX-IO: 1.0.1
    ChimeraX-ItemsInspection: 1.0
    ChimeraX-Label: 1.1
    ChimeraX-ListInfo: 1.1.1
    ChimeraX-Log: 1.1.5
    ChimeraX-LookingGlass: 1.1
    ChimeraX-Maestro: 1.8.1
    ChimeraX-Map: 1.1
    ChimeraX-MapData: 2.0
    ChimeraX-MapEraser: 1.0
    ChimeraX-MapFilter: 2.0
    ChimeraX-MapFit: 2.0
    ChimeraX-MapSeries: 2.1
    ChimeraX-Markers: 1.0
    ChimeraX-Mask: 1.0
    ChimeraX-MatchMaker: 2.0.6
    ChimeraX-MDcrds: 2.6
    ChimeraX-MedicalToolbar: 1.0.1
    ChimeraX-Meeting: 1.0
    ChimeraX-MLP: 1.1
    ChimeraX-mmCIF: 2.7
    ChimeraX-MMTF: 2.1
    ChimeraX-Modeller: 1.5.5
    ChimeraX-ModelPanel: 1.3.2
    ChimeraX-ModelSeries: 1.0
    ChimeraX-Mol2: 2.0
    ChimeraX-Morph: 1.0
    ChimeraX-MouseModes: 1.1
    ChimeraX-Movie: 1.0
    ChimeraX-Neuron: 1.0
    ChimeraX-Nucleotides: 2.0.2
    ChimeraX-OpenCommand: 1.8
    ChimeraX-PDB: 2.6.6
    ChimeraX-PDBBio: 1.0
    ChimeraX-PDBLibrary: 1.0.2
    ChimeraX-PDBMatrices: 1.0
    ChimeraX-PickBlobs: 1.0
    ChimeraX-Positions: 1.0
    ChimeraX-PresetMgr: 1.1
    ChimeraX-PubChem: 2.1
    ChimeraX-ReadPbonds: 1.0.1
    ChimeraX-Registration: 1.1
    ChimeraX-RemoteControl: 1.0
    ChimeraX-ResidueFit: 1.0
    ChimeraX-RestServer: 1.1
    ChimeraX-RNALayout: 1.0
    ChimeraX-RotamerLibMgr: 2.0.1
    ChimeraX-RotamerLibsDunbrack: 2.0
    ChimeraX-RotamerLibsDynameomics: 2.0
    ChimeraX-RotamerLibsRichardson: 2.0
    ChimeraX-SaveCommand: 1.5
    ChimeraX-SchemeMgr: 1.0
    ChimeraX-SDF: 2.0
    ChimeraX-Segger: 1.0
    ChimeraX-Segment: 1.0
    ChimeraX-SelInspector: 1.0
    ChimeraX-SeqView: 2.5
    ChimeraX-Shape: 1.0.1
    ChimeraX-Shell: 1.0
    ChimeraX-Shortcuts: 1.1
    ChimeraX-ShowAttr: 1.0
    ChimeraX-ShowSequences: 1.0
    ChimeraX-SideView: 1.0
    ChimeraX-Smiles: 2.1
    ChimeraX-SmoothLines: 1.0
    ChimeraX-SpaceNavigator: 1.0
    ChimeraX-StdCommands: 1.8
    ChimeraX-STL: 1.0
    ChimeraX-Storm: 1.0
    ChimeraX-StructMeasure: 1.0.1
    ChimeraX-Struts: 1.0.1
    ChimeraX-Surface: 1.0
    ChimeraX-SwapAA: 2.0
    ChimeraX-SwapRes: 2.1.1
    ChimeraX-TapeMeasure: 1.0
    ChimeraX-Test: 1.0
    ChimeraX-Toolbar: 1.1
    ChimeraX-ToolshedUtils: 1.2.1
    ChimeraX-Tug: 1.0
    ChimeraX-UI: 1.16.3
    ChimeraX-uniprot: 2.2
    ChimeraX-UnitCell: 1.0
    ChimeraX-ViewDockX: 1.1.2
    ChimeraX-VIPERdb: 1.0
    ChimeraX-Vive: 1.1
    ChimeraX-VolumeMenu: 1.0
    ChimeraX-VTK: 1.0
    ChimeraX-WavefrontOBJ: 1.0
    ChimeraX-WebCam: 1.0
    ChimeraX-WebServices: 1.0
    ChimeraX-Zone: 1.0
    colorama: 0.4.4
    cxservices: 1.1
    cycler: 0.11.0
    Cython: 0.29.26
    debugpy: 1.5.1
    decorator: 5.1.1
    docutils: 0.17.1
    entrypoints: 0.4
    filelock: 3.4.2
    fonttools: 4.31.2
    funcparserlib: 1.0.0a0
    grako: 3.16.5
    html2text: 2020.1.16
    idna: 3.3
    ihm: 0.27
    imagesize: 1.3.0
    ipykernel: 6.6.1
    ipython: 7.31.1
    ipython-genutils: 0.2.0
    jedi: 0.18.1
    Jinja2: 3.0.3
    jupyter-client: 7.1.0
    jupyter-core: 4.9.2
    kiwisolver: 1.4.0
    line-profiler: 3.4.0
    lxml: 4.7.1
    lz4: 3.1.10
    MarkupSafe: 2.1.1
    matplotlib: 3.5.1
    matplotlib-inline: 0.1.3
    msgpack: 1.0.3
    nest-asyncio: 1.5.4
    networkx: 2.6.3
    numpy: 1.22.1
    openvr: 1.16.802
    packaging: 21.0
    ParmEd: 3.4.3
    parso: 0.8.3
    pexpect: 4.8.0
    pickleshare: 0.7.5
    Pillow: 9.0.1
    pip: 21.3.1
    pkginfo: 1.8.2
    prompt-toolkit: 3.0.28
    psutil: 5.9.0
    ptyprocess: 0.7.0
    pycollada: 0.7.2
    pydicom: 2.2.2
    Pygments: 2.11.2
    PyOpenGL: 3.1.5
    PyOpenGL-accelerate: 3.1.5
    pyparsing: 3.0.7
    PyQt6: 6.2.3
    PyQt6-Qt6: 6.2.4
    PyQt6-sip: 13.2.0
    PyQt6-WebEngine: 6.2.1
    PyQt6-WebEngine-Qt6: 6.2.4
    python-dateutil: 2.8.2
    pytz: 2022.1
    pyzmq: 22.3.0
    qtconsole: 5.2.2
    QtPy: 2.0.1
    requests: 2.27.1
    scipy: 1.7.3
    setuptools: 59.8.0
    six: 1.16.0
    snowballstemmer: 2.2.0
    sortedcontainers: 2.4.0
    Sphinx: 4.3.2
    sphinx-autodoc-typehints: 1.15.2
    sphinxcontrib-applehelp: 1.0.2
    sphinxcontrib-blockdiag: 3.0.0
    sphinxcontrib-devhelp: 1.0.2
    sphinxcontrib-htmlhelp: 2.0.0
    sphinxcontrib-jsmath: 1.0.1
    sphinxcontrib-qthelp: 1.0.3
    sphinxcontrib-serializinghtml: 1.1.5
    suds-community: 1.0.0
    tifffile: 2021.11.2
    tinyarray: 1.2.4
    tornado: 6.1
    traitlets: 5.1.1
    urllib3: 1.26.9
    wcwidth: 0.2.5
    webcolors: 1.11.1
    wheel: 0.37.1
    wheel-filename: 1.3.0

[Tom Goddard]

The PAE plots show each residue is pretty strongly connected to the 5 residues before and beyond it in the sequence. I tried another method of excluding edges from the clustering graph that were between nodes <= 5 residues apart. The result was not too bad, but gave some fragmented alpha helices.

It is somewhat surprising that the strong connectivity to previous and following 5 residues does not connect all the residues in the entire sequence. Not really clear how the current algorithm makes the breaks between domains.

[Tom Goddard]

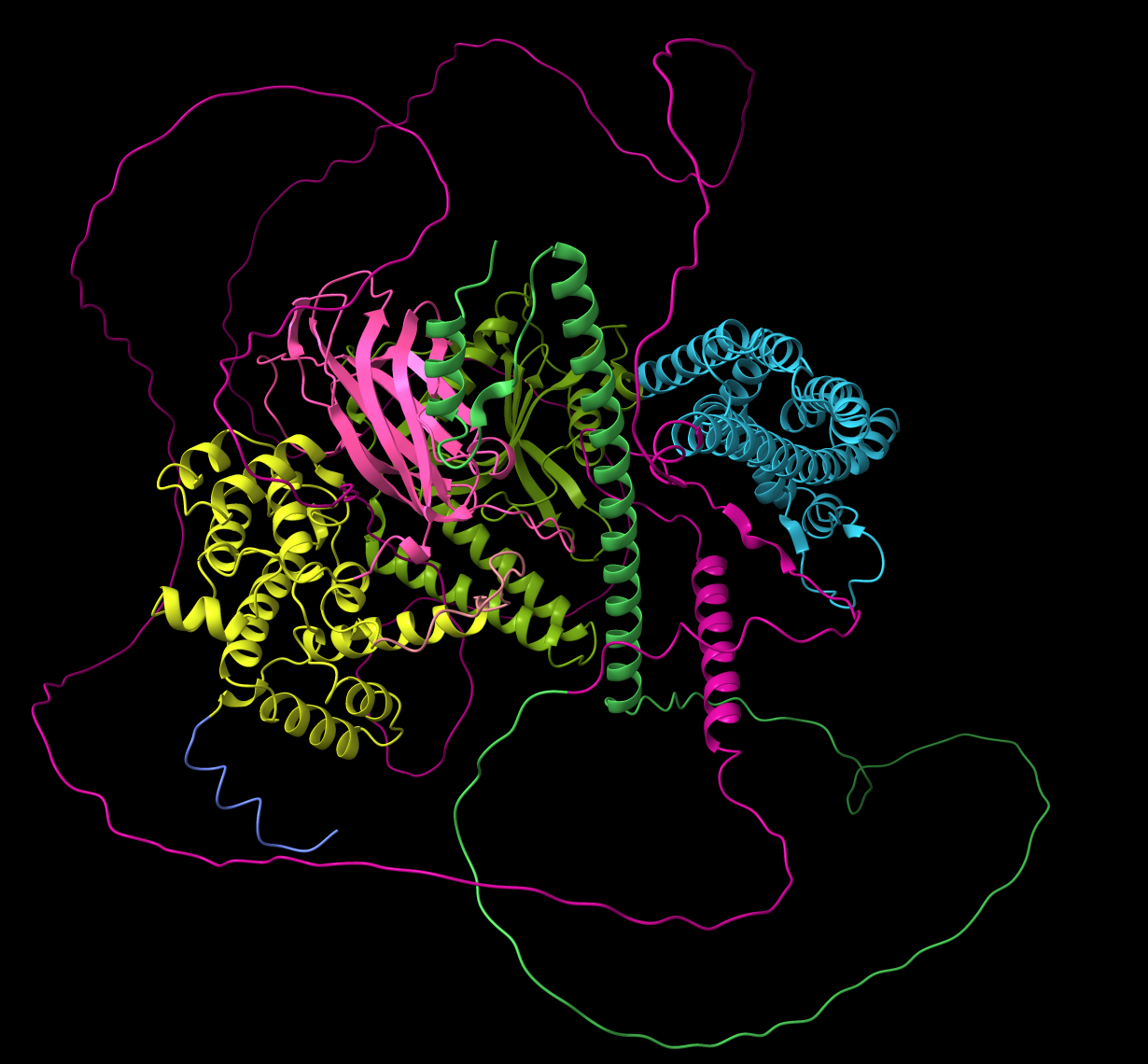

Example of domain coloring included disordered loops.
