#635 closed defect (fixed)

silhouettes don't work right in orthographic

Reported by: Elaine Meng Owned by: Tom Goddard
Priority: minor Milestone:
Component: Graphics Version:
Keywords: Cc:
Blocked By: Blocking:
Notify when closed: Platform: all
Project: ChimeraX

Description

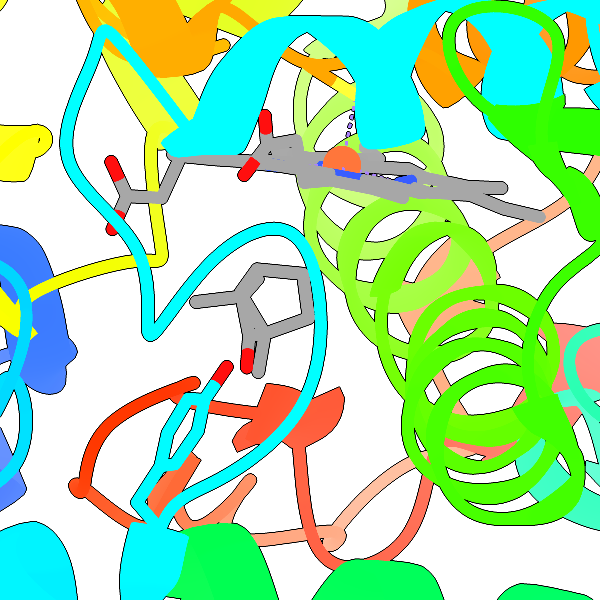

With silhouettes + camera ortho, the outlines for depth jumps disappear regardless of depth jump magnitude... only the outlines around the outer edges remain. Example image attached.

Attachments (1)

orthosil.png​ (95.1 KB ) - added by Elaine Meng 9 years ago.

Download all attachments as: .zip

Change History (2)

by Elaine Meng, 9 years ago

Attachment: orthosil.png​ added

comment:1 by Tom Goddard, 9 years ago

Resolution: → fixed
Status: assigned → closed

Fixed.

The silhouette edge depth jump test was assuming perspective projection. I made it handle orthographic projection too.
