ghosting of left eye on 3D stereo of a selected atom.

[kenneth.satyshur@…]

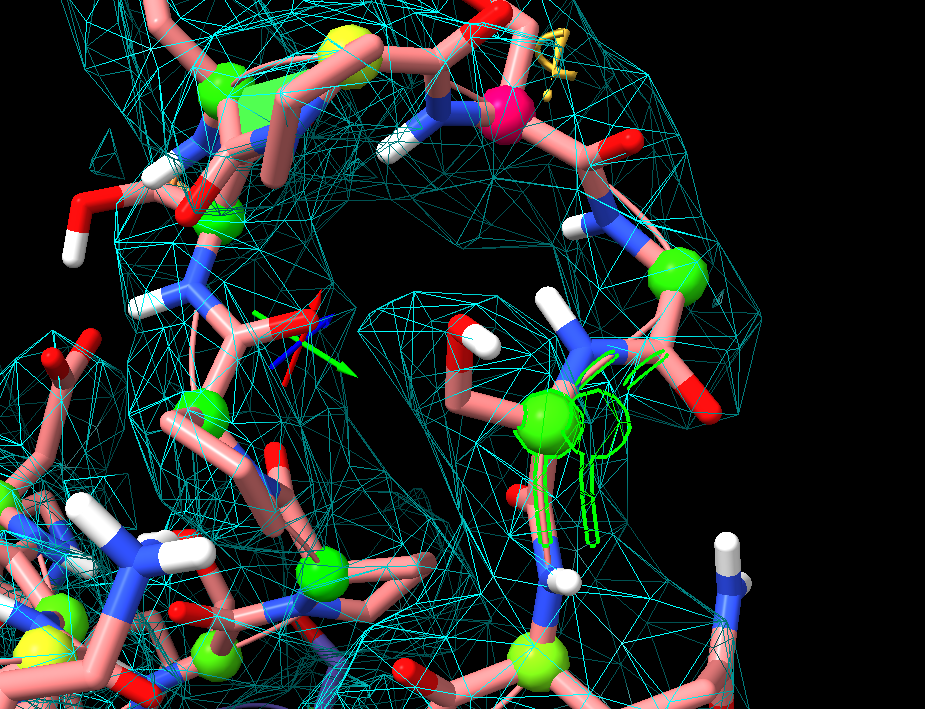

When it is selected, green borders are around the atoms. But in 3D only the right eye has the correct depth. The left eye is left in the 2D plane of the screen.
