#4483 closed defect (fixed)

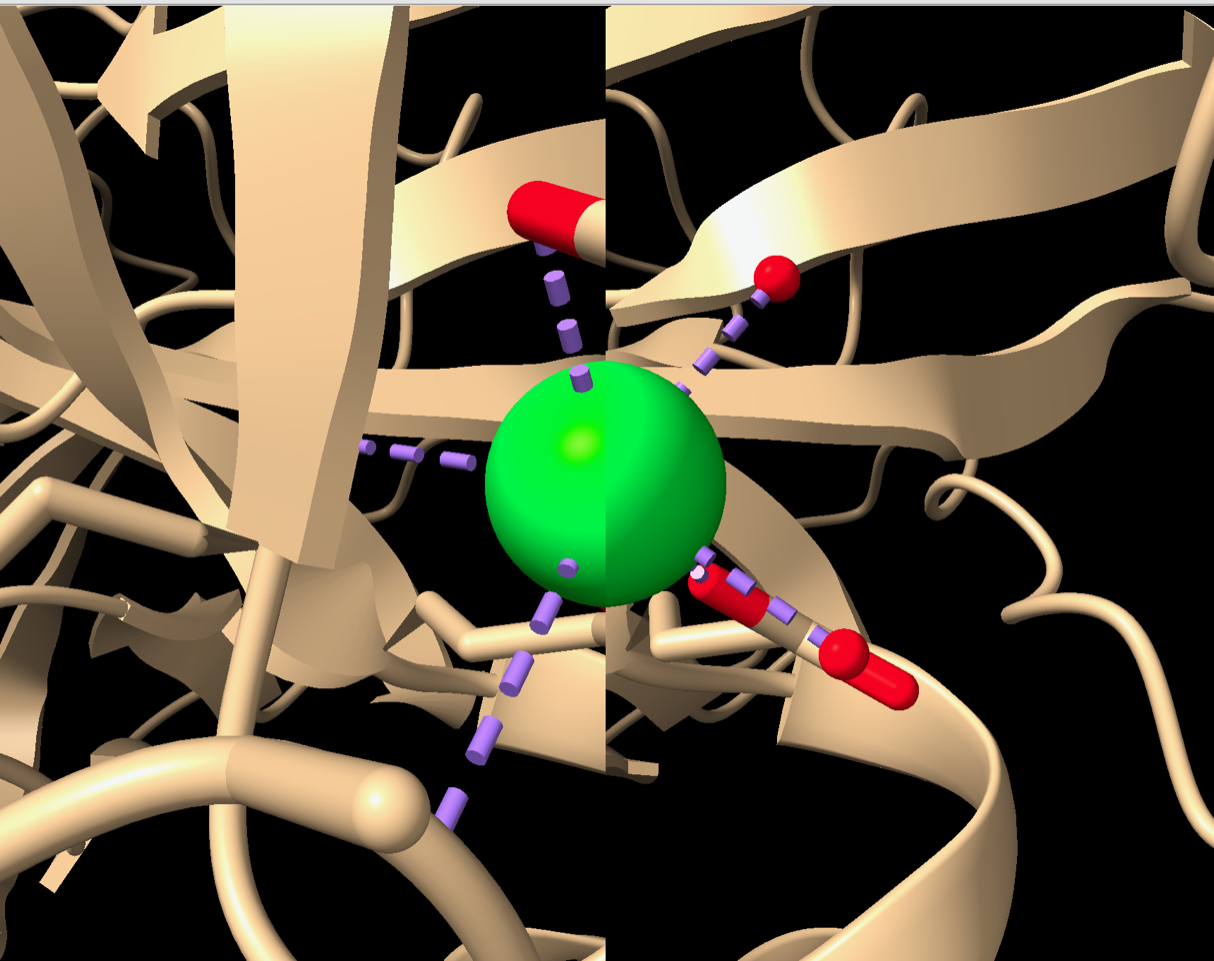

side by side camera: zoom misaligns

Reported by: rjr27@… Owned by: Tom Goddard
Priority: normal Milestone:
Component: Graphics Version:
Keywords: Cc: Tristan Croll
Blocked By: Blocking:
Notify when closed: Platform: all
Project: ChimeraX

Description

The following bug report has been submitted:
Platform:        Linux-4.15.0-140-generic-x86_64-with-debian-buster-sid
ChimeraX Version: 1.1 (2020-09-09 22:22:27 UTC)
Description
(Describe the actions that caused this problem to occur here)
I tried to use the "camera sbs" side- by-side stereo mode, which I'm pretty sure worked in an earlier version. The problem is that when you zoom in, the two views are horribly misaligned.  I think the problem might be that the zoom is centered on the space each image might take if the mode were mono.
