#3677 closed defect (fixed)

per-model clipping status not saved in session

Reported by: Elaine Meng Owned by: Tom Goddard
Priority: major Milestone:
Component: Surface Version:
Keywords: Cc:
Blocked By: Blocking:
Notify when closed: Platform: all
Project: ChimeraX

Description

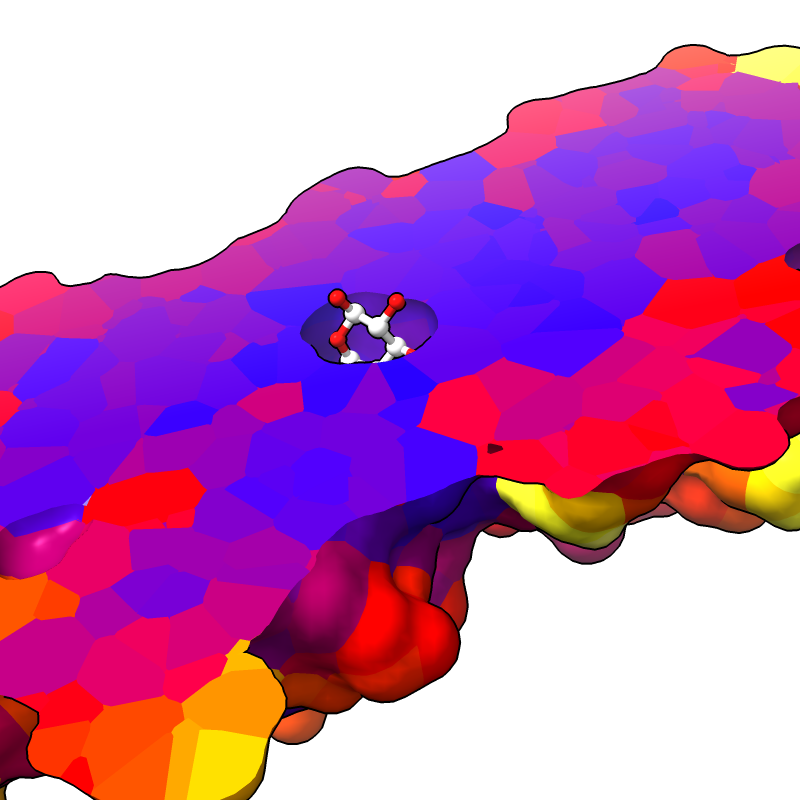

The attached session was saved with atomic model clipping off, surface model clipping on. Should look like the attached image. Session and image made with attached cxc file followed by interactive positioning of models and clip plane.

Also does not save cap coloring which I guess I'll make a separate ticket for.

Attachments (3)

bfactorclip.png​ (147.9 KB ) - added by Elaine Meng 5 years ago.
bfactorclip.cxs​ (11.0 MB ) - added by Elaine Meng 5 years ago.
bfactorclip.cxc​ (347 bytes ) - added by Elaine Meng 5 years ago.

Change History (6)

by Elaine Meng, 5 years ago

Attachment: bfactorclip.png​ added

by Elaine Meng, 5 years ago

Attachment: bfactorclip.cxs​ added

by Elaine Meng, 5 years ago

Attachment: bfactorclip.cxc​ added

comment:1 by Elaine Meng, 5 years ago

tested on Mac with daily build UCSF ChimeraX version: 1.1.dev202009010201 (2020-09-01)

comment:2 by Tom Goddard, 5 years ago

Resolution: → fixed
Status: assigned → closed

Fixed in 1.2.

The allow_clipping attribute was not saved in sessions. Once that was fixed there were issues in how session restore propagates allow_clipping and accept_shadows, ... from parent models to child drawings, for instance the bonds of the structure were clipped but the atoms were not after session restore. I fixed this but could cause wide-spread trouble so not putting it in 1.1 release.

in reply to:  6 comment:3 by Elaine Meng, 5 years ago

same behavior in UCSF ChimeraX version: 1.1rc202008312018 (2020-08-31)
