#3426 assigned defect

Windows display scaling bad GUI control sizes

Reported by: goddard@… Owned by: Tom Goddard
Priority: normal Milestone:
Component: Window Toolkit Version:
Keywords: Cc:
Blocked By: Blocking:
Notify when closed: Platform: all
Project: ChimeraX

Description

The following bug report has been submitted:
Platform:        Windows-10-10.0.18362
ChimeraX Version: 1.0 (2020-06-04 23:15:07 UTC)
Description
On Windows 10 with display scaling set to 200% on a 2560x1440 display, half the GUI elements are half size and half are full size.  For instance the command line text is half size, model panel text is full size, toolbar icon and tab name text is half size, Window menus are full size, Volume Viewer controls above histogram are mostly half size.

Log:
UCSF ChimeraX version: 1.0 (2020-06-04)
© 2016-2020 Regents of the University of California. All rights reserved.
How to cite UCSF ChimeraX

> open 4hus format mmcif fromDatabase pdb

4hus title:
Crystal structure of streptogramin group A antibiotic acetyltransferase VatA
from Staphylococcus aureus in complex with virginiamycin M1 [more info...]

Chain information for 4hus #1
---
Chain | Description
A B C | Virginiamycin A acetyltransferase

Non-standard residues in 4hus #1
---
CL — chloride ion
EDO — 1,2-ethanediol (ethylene glycol)
NA — sodium ion
PEG — di(hydroxyethyl)ether
PGE — triethylene glycol
SO4 — sulfate ion
VIR — virginiamycin M1


> open 30210 format ccp4 fromDatabase emdb

Opened emd_30210.map, grid size 192,192,192, pixel 1.01, shown at level
0.0278, step 1, values float32




OpenGL version: 3.3.0 NVIDIA 442.19
OpenGL renderer: GeForce GTX 1080 Ti/PCIe/SSE2
OpenGL vendor: NVIDIA Corporation
Manufacturer: Gigabyte Technology Co., Ltd.
Model: Z270X-Gaming K7
OS: Microsoft Windows 10 Home (Build 18362)
Memory: 17,129,693,184
MaxProcessMemory: 137,438,953,344
CPU: 8 Intel(R) Core(TM) i7-7700K CPU @ 4.20GHz"
PyQt version: 5.12.3
Compiled Qt version: 5.12.4
Runtime Qt version: 5.12.8
File attachment: Screenshot (1).png

Screenshot (1).png​

Attachments (3)

Screenshot (1).png​ (883.6 KB ) - added by goddard@… 5 years ago.
Added by email2trac

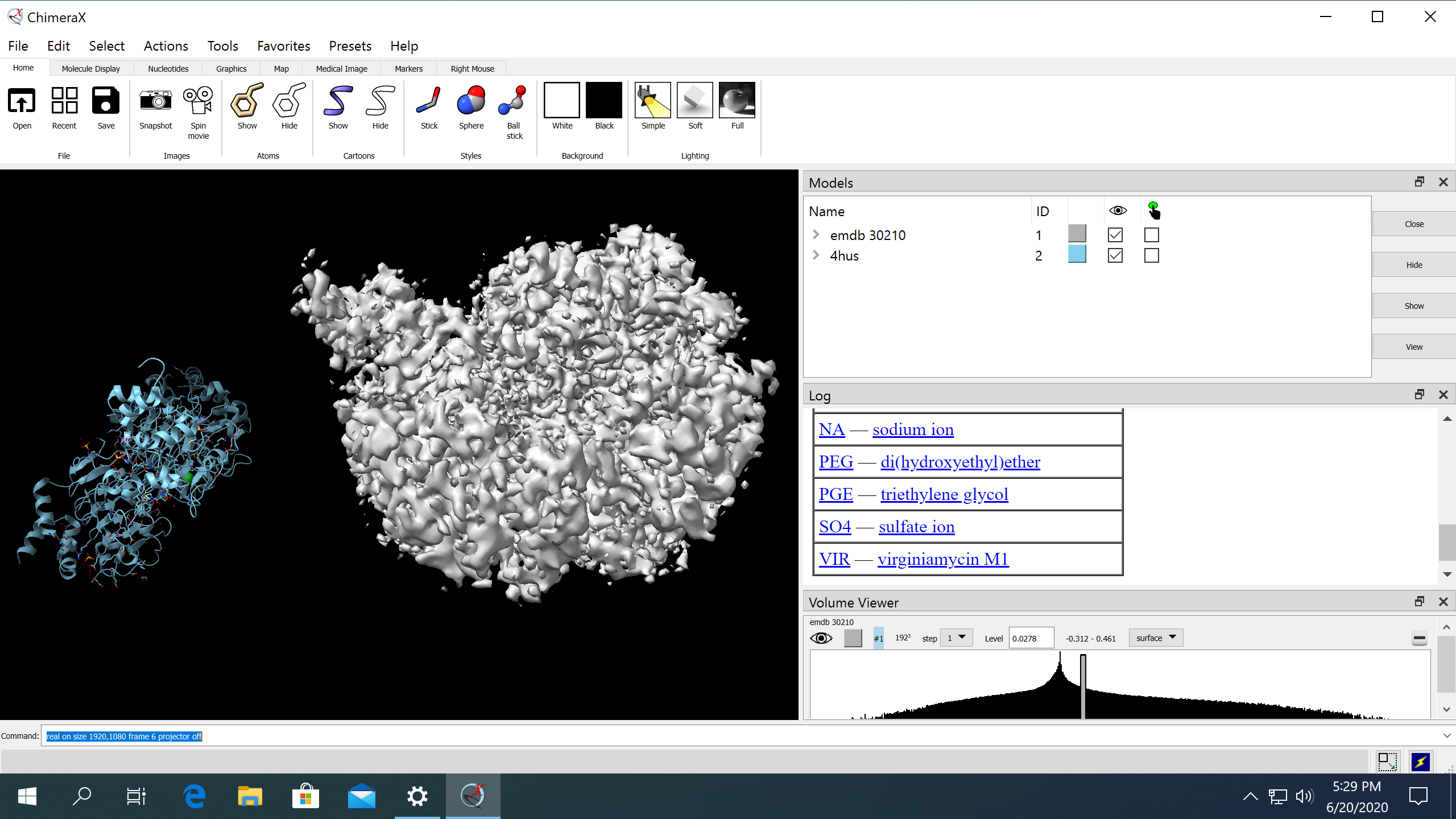

win10_200scale.png​ (883.6 KB ) - added by Tom Goddard 5 years ago.
200% scaling gives bad font sizes.

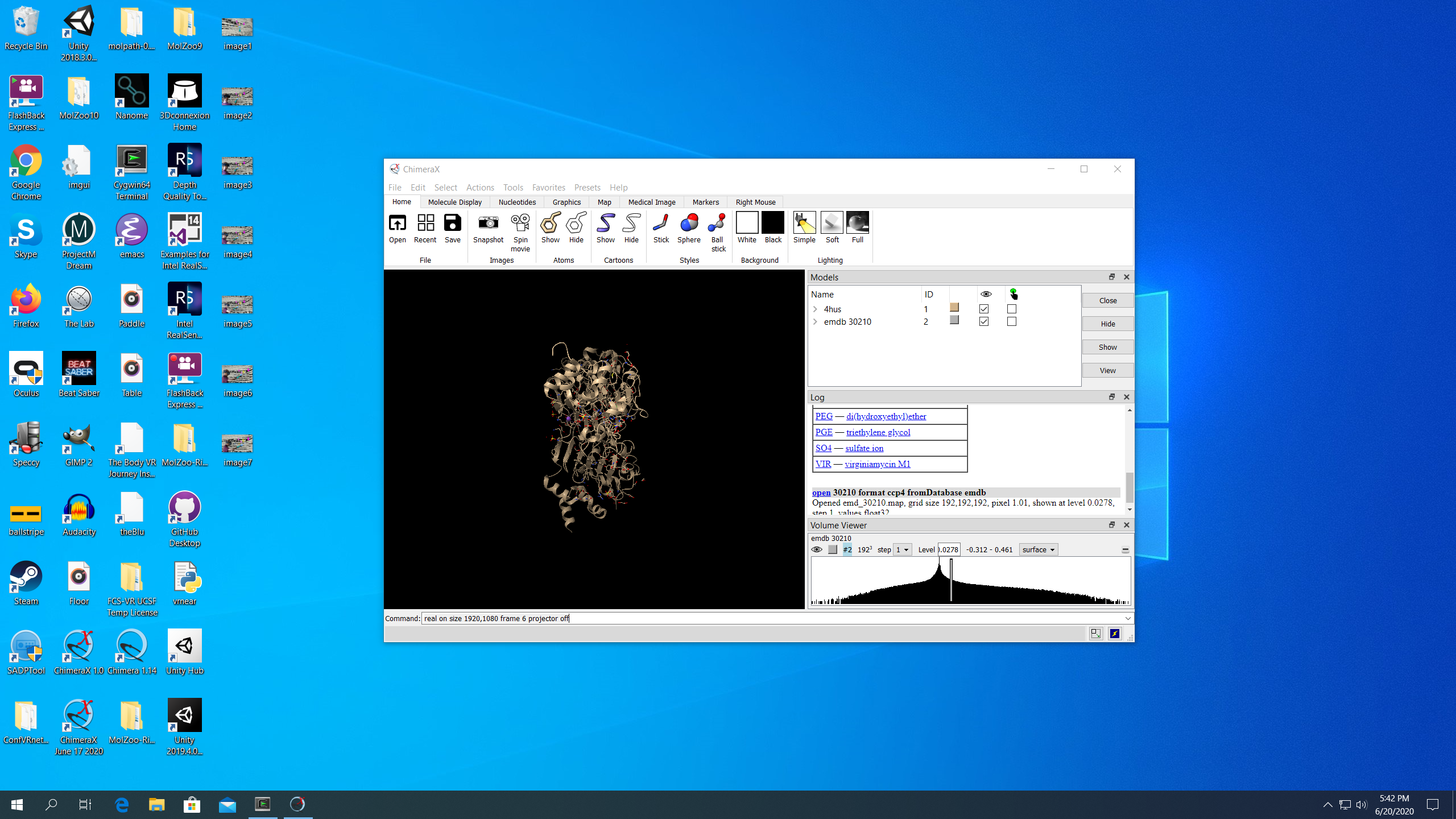

win10_125scale.png​ (1.8 MB ) - added by Tom Goddard 5 years ago.
Recommended 125% scaling gives good font sizes.

Change History (5)

by goddard@…, 5 years ago

Attachment: Screenshot (1).png​ added

Added by email2trac

comment:1 by Tom Goddard, 5 years ago

Component: Unassigned → Window Toolkit
Owner: set to Tom Goddard
Platform: → all
Project: → ChimeraX
Status: new → assigned
Summary: ChimeraX bug report submission → Windows display scaling bad GUI control sizes

by Tom Goddard, 5 years ago

Attachment: win10_200scale.png​ added

200% scaling gives bad font sizes.

by Tom Goddard, 5 years ago

Attachment: win10_125scale.png​ added

Recommended 125% scaling gives good font sizes.

comment:2 by Tom Goddard, 5 years ago

Qt 5.14 may have improved high DPI support as described here

​https://lists.qt-project.org/pipermail/development/2019-September/037434.html
