#19737 closed defect (fixed)
Volume viewer histogram markers invisible in image style
| Reported by: | Owned by: | Zach Pearson | |
|---|---|---|---|
| Priority: | high | Milestone: | |
| Component: | Volume Data | Version: | |
| Keywords: | Cc: | chimerax-programmers | |
| Blocked By: | Blocking: | ||
| Notify when closed: | Platform: | all | |
| Project: | ChimeraX |
Description
The following bug report has been submitted:
Platform: macOS-26.2-arm64-arm-64bit
ChimeraX Version: 1.11 (2025-12-17 06:45:39 UTC)
Description

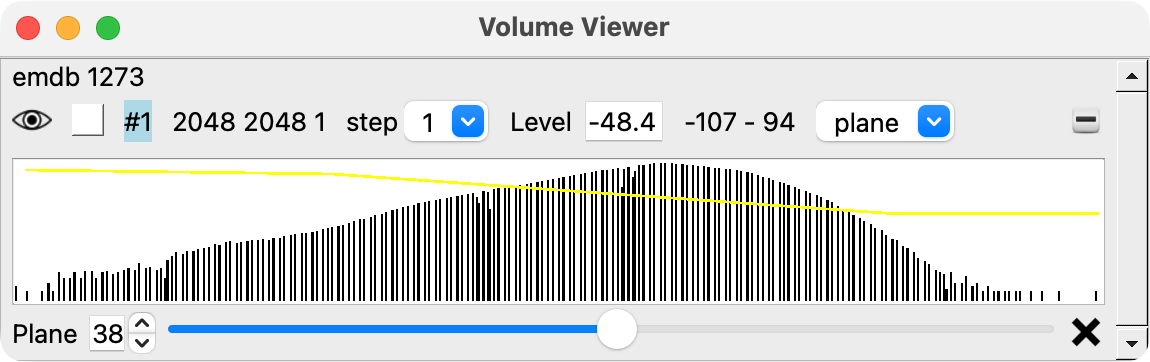

The small square controls on the volume viewer histogram have lost their black borders making the white squares on the white background invisible. Apparently changes to support dark mode broke this.
