silhouettes not shown when first opening session with silhouettes

[Elaine Meng]

Often when I open a session with silhouettes and silhouettes were not previously shown in that instance of ChimeraX, the silhouettes are not shown until there is a redraw, like resizing the window. Attached session and 2 screenshots: right after opening, then after resizing window. It is not 100% reproducible, but it is reproducible in that it happens frequently and I've experienced it at least a dozen times.

Still, it's workaround-able, so prioritize/reassign (or even close) as appropriate.

[Elaine Meng]

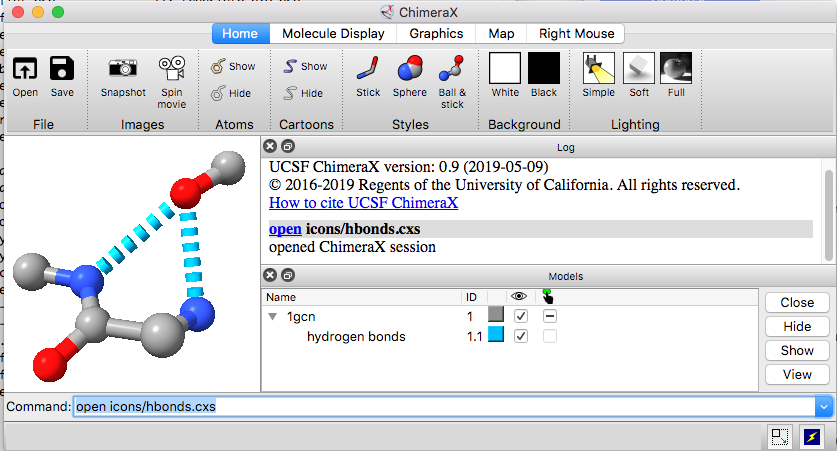

screenshot right after opening session

[Elaine Meng]

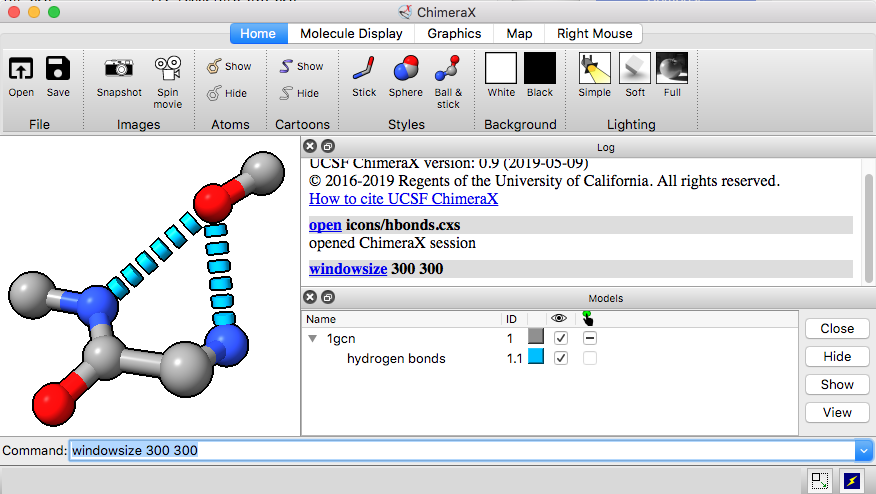

screenshot after resizing window

[Tom Goddard]

In a dozen tries opening your session I always get silhouette edges shown.

When you open the session is it from typing the open command in the command-line? Or from clicking file history thumbnail? Or drag and drop? Or on a shell command-line? Is it right after you start ChimeraX or after you have been using it? Do you have "resize graphics window on session restore" preference set?

[Elaine Meng]

It seems like once that that ChimeraX has shown silhouettes, it will show them correctly thereafter, so trying again will not evince the problem.  Usually happens the first time I uses a downloaded ChimeraX, and I believe it has been both with clicking a thumbnail in the file history and with using the “open” command within ChimeraX after starting it.

[Tom Goddard]

Fixed.

Happened only when "Resize graphics window on session restore" preference is set true. The silhouette edge setting was done after the window size adjustment and did not cause a redraw of the scene. Only happens some of the time depending on how fast the window resize happens.
