Opened 10 years ago

Closed 9 years ago

#161 closed defect (fixed)

Ribbon normals are weird, 1a0m chain B

Reported by: Tom Goddard Owned by: Conrad Huang
Priority: major Milestone:
Component: Depiction Version:
Keywords: Cc:
Blocked By: Blocking:
Notify when closed: Platform: all
Project: chimera

Description

Ribbon normals are weird in the helix in chain B of 1a0m, with a strange twist that is not seen in Chimera 1. Images from Chimera 2 and Chimera 1 attached.

Attachments (2)

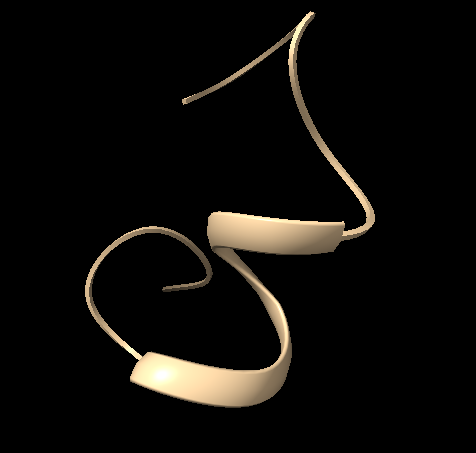

1a0m_B_chimera2.png​ (24.4 KB ) - added by Tom Goddard 10 years ago.
Chimera 2 image.

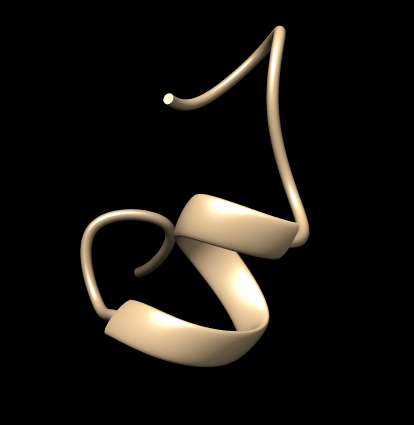

1a0m_B_chimera1.png​ (35.0 KB ) - added by Tom Goddard 10 years ago.
Chimera 1 image.

Download all attachments as: .zip

Change History (4)

by Tom Goddard, 10 years ago

Attachment: 1a0m_B_chimera2.png​ added

Chimera 2 image.

by Tom Goddard, 10 years ago

Attachment: 1a0m_B_chimera1.png​ added

Chimera 1 image.

comment:1 by Eric Pettersen, 10 years ago

Component: Molecular Viewer → Depiction

comment:2 by Conrad Huang, 9 years ago

Resolution: → fixed
Status: new → closed

Fixed. Could have been one of several changes made for ribbon orientation.
