Wrl outputs have bleeding color

[kristen.browne@…]

Tom:

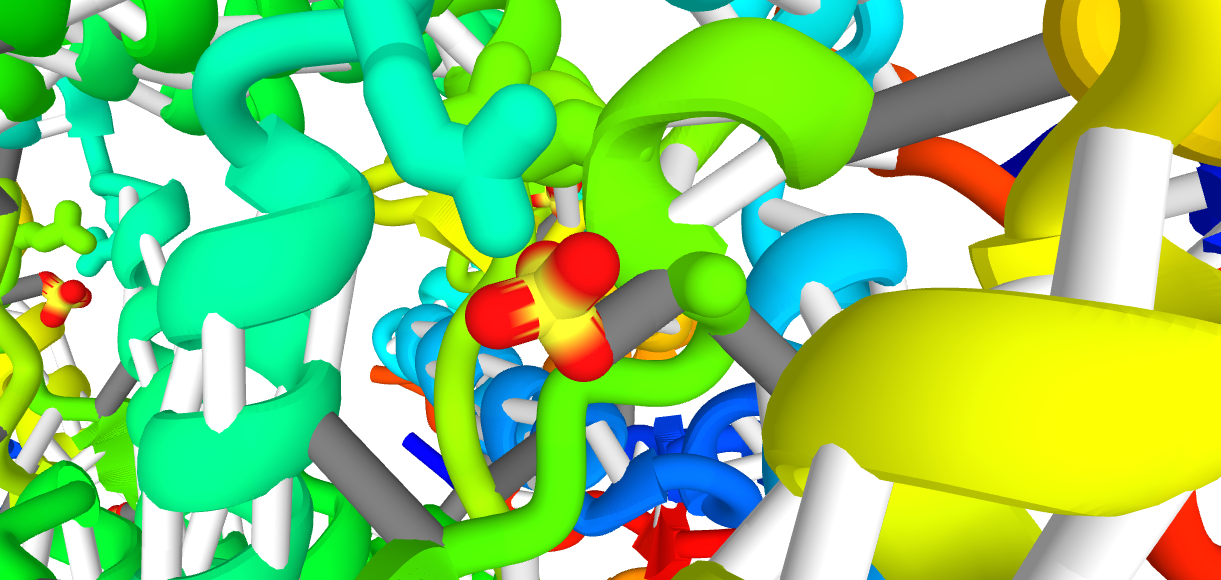

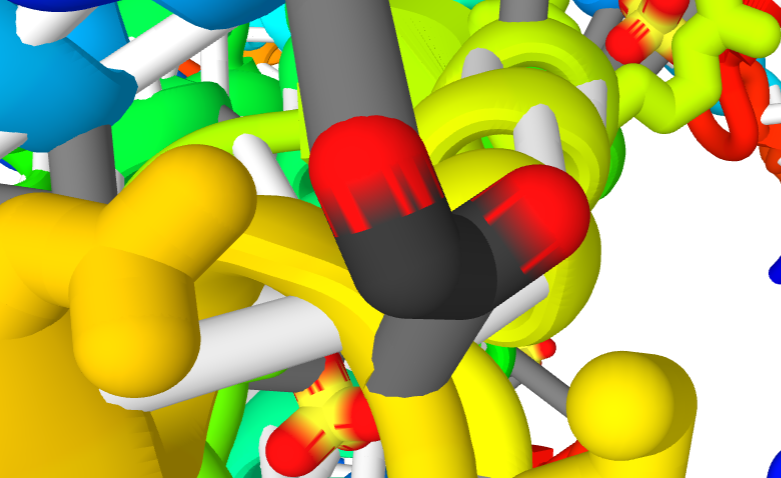

I was just looking at a ribbon-print model that has small molecules attached, and it has some color bleed:
[cid:image001.png@01DAD76E.208480E0]
[cid:image002.png@01DAD76E.208480E0]
These look just fine from the previous GLBs.  Small molecules on their own are fine with crisp boundaries.  This is the only place I've seen a problem so far.

Any idea whether this might be fixable?

Thanks!

Kristen

[kristen.browne@…]

Added by email2trac

[kristen.browne@…]

Added by email2trac

[Tom Goddard]

Hi Kristen,

Was some mesh decimation or editing done on the per-vertex .wrl after being output from ChimeraX? Because it looks as if two coincident vertices at the midpoint of the bond between the red and yellow atoms got combined into a single vertex. The original two vertices would have one red and the other yellow to give a crisp color boundary. But if they were merged and one of the two colors was then lost then that would explain this artifact. Any mesh editing would have to take account of the per-vertex colors and not merge vertices of different colors.

If no mesh editing was done and the images you attached are directly rendered from the ChimeraX .wrl then I would want to know what VRML renderer made the image. It may be that that VRML render does the vertex combining that messes up the colors.

I am pretty sure ChimeraX is outputing a sharp color boundary and if you showed the .wrl it outputs in an faithful VRML viewer it will show the sharp boundary.

Tom

[kristen.browne@…]

Tom:

I just went into ChimeraX and output a WRL directly from there and the color boundary is ok. I'm guessing that the workflows have a bug and are over-writing the wrl from ChimeraX with a processed one in our testing environment. I'll check with Mike. Our mesh processing stuff will all be replaced in not too long and will watch out for this happening at the time.

Thanks for the clarification!

Kristen

[Tom Goddard]

Glad you have a lead on the problem. Let me know if other issues arise with the VRML or GLTF.
