#14542 assigned defect
Log does not scroll to bottom after new command
| Reported by: | Owned by: | Tom Goddard | |
|---|---|---|---|
| Priority: | normal | Milestone: | |
| Component: | Logging | Version: | |
| Keywords: | Cc: | Eric Pettersen | |
| Blocked By: | Blocking: | ||
| Notify when closed: | Platform: | all | |
| Project: | ChimeraX |
Description (last modified by )
The following bug report has been submitted:
Platform: macOS-13.6.1-arm64-arm-64bit
ChimeraX Version: 1.7.1 (2024-01-23 01:58:08 UTC)
Description
Log is not auto-scrolling.
When I asked about this in December on the mailing list, Tom requested I open a bug when I saw this.
Unfortunately I do not know exactly when this started happening, or how to reproduce.
I have had ChimeraX running for a while (a few hours), including on an external monitor earlier and now on my laptop. I've also moved (Log, Models) windows around. But again, I'm not sure when the scrolling behavior changed. Sorry this is not more descriptive and likely very difficult to reproduce.

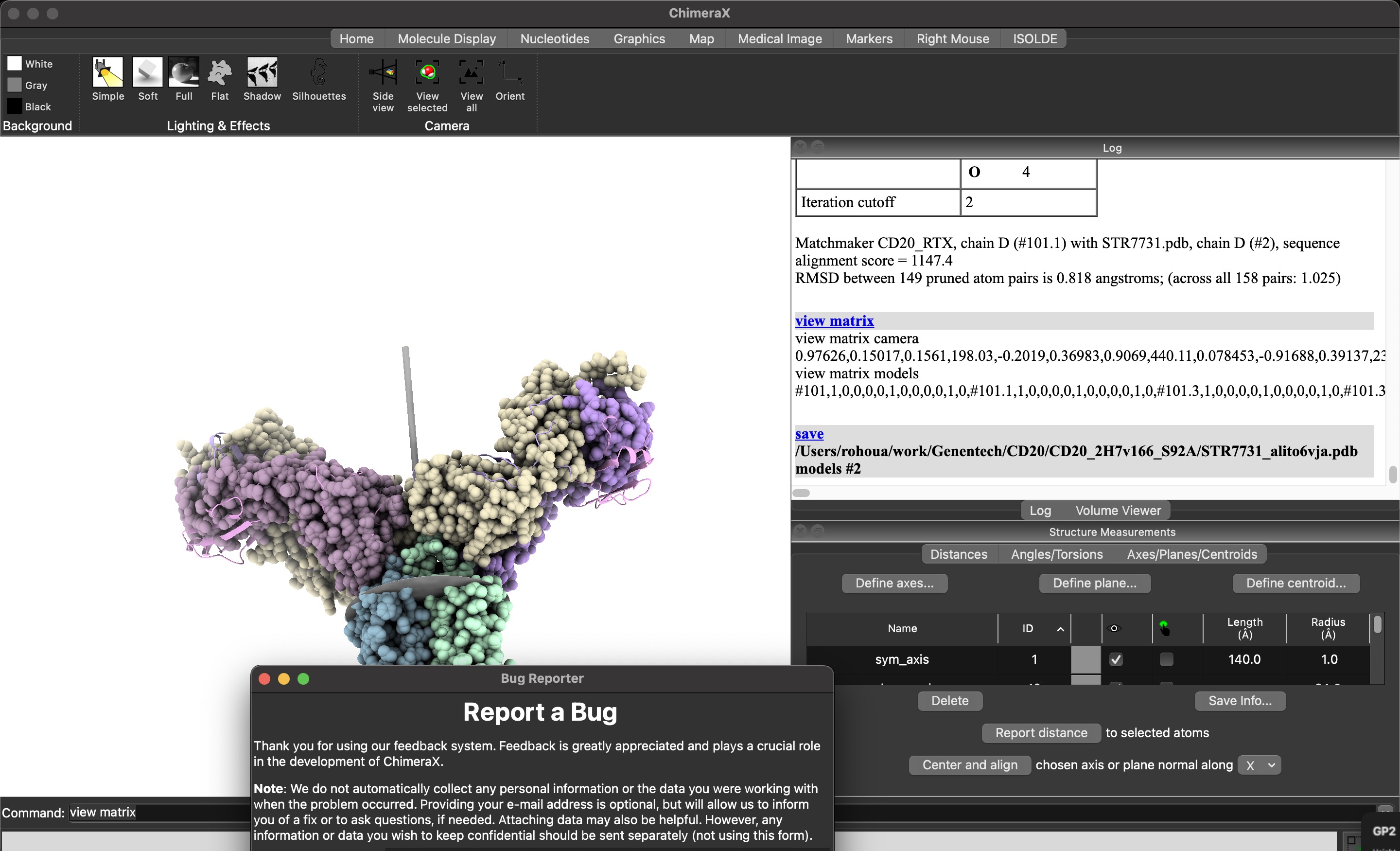

In case it helps, I'm attaching a screenshot I just took, after issuing the "view matrix" command. As you can see, the log window has not scrolled down - it's still got the save command at the bottom.
If you can think of a diagnostic test I can run, please let me know. For my part, I'll try to pay more attention to the scrolling behavior after a ChimeraX restart to see if I can notice when this starts to happen.
