#1306 closed defect (fixed)

pseudobond labels not on top

Reported by: Elaine Meng Owned by: Tom Goddard
Priority: moderate Milestone:
Component: Depiction Version:
Keywords: Cc:
Blocked By: Blocking:
Notify when closed: Platform: all
Project: ChimeraX

Description

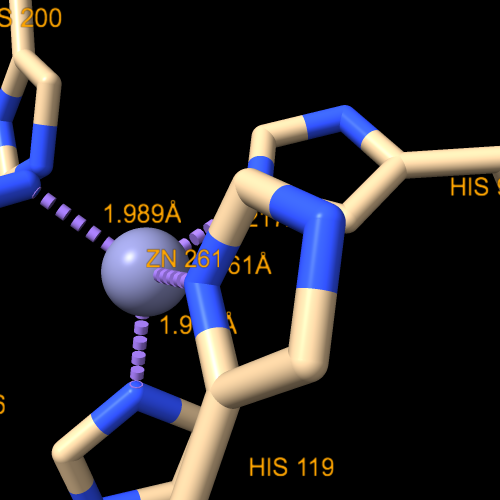

When I show pseudobond labels, they are not on top and cannot be made to be on top. Atom, bond, residue labels don't have this problem. Image attached of 1bzm zinc-binding site with residues and pseudobonds labeled.

Attachments (1)

pblabels.png​ (80.6 KB ) - added by Elaine Meng 7 years ago.

Download all attachments as: .zip

Change History (2)

by Elaine Meng, 7 years ago

Attachment: pblabels.png​ added

comment:1 by Tom Goddard, 7 years ago

Resolution: → fixed
Status: assigned → closed

Fixed.

This was a bit tricky to fix. Needed to add a new graphics draw pass ("last") to properly draw the labels on top.
I also reverted not-on-top labels to draw as transparent models so that the blend correctly but this has the adverse
effect that they will be hidden beneath transparent surfaces unless a label background color is used. I don't have
any good way to remedy that -- it is a manifestation of the one-layer transparency limitation.
