Render images in nogui mode

[Tom Goddard]

Want to be able to render images in nogui mode on a server that has no display or graphics card.
The PDB requested this for rendering their web site images on a server.

[Tom Goddard]

Begin forwarded message:

From: Ezra Peisach
Subject: Re: Chimera 2.0, mmCIF and biological assemblies.....
Date: June 26, 2015 at 11:55:11 AM PDT
To: Tom Goddard
Cc: Tom Ferrin, Chimera Staff <chimera-staff@…>

Right now - we could benefit from the fast mmCIF parser to aid in our evaluation.

The highest priority moving forward will be the ability to interpret mmCIF assembly information. This is not a show stopper at the moment - but would be best if we do not need to create separate assembly files for generation - but instead could read and parse.

Virus capsids - as you can tell - are from higher order multiscale models... I envision that we would want to keep it.

Eventually - a headless implementation (--nogui) - would be for batch processing....

Ezra

[Tom Goddard]

I tried OSMesa (off-screen Mesa) from Mesa 10.6.2 on a linux system (Ubuntu 15.04) and was able to have Chimera 2 render in --nogui mode both density maps and molecules. I used the OSMesa llvmpipe software renderer that uses llvm to compile shader programs for running on the CPU. The GPU was not used.

[Tom Goddard]

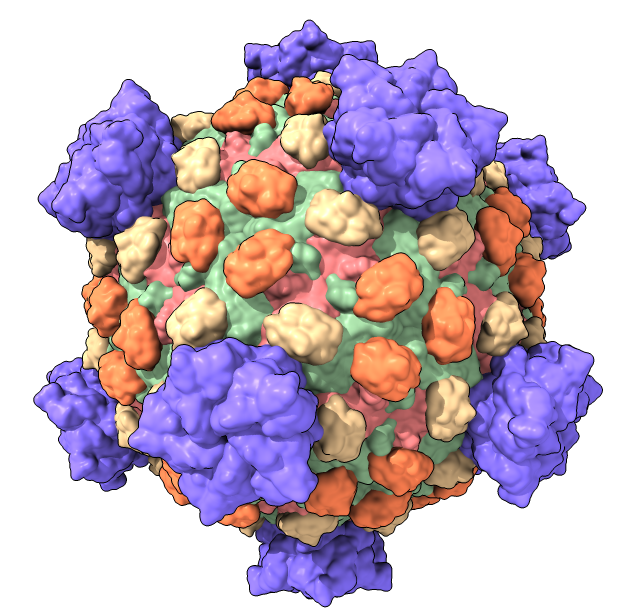

Image rendered with nogui mode and osmesa llvmpipe on Ubuntu 15.04.

[Tom Goddard]

I tried the same OSMesa llvmpipe (mesa 10.6.2) approach on Mac OS 10.10.4 and it crashes in glDrawElementsInstanced() on a memory deallocation (FREE() call) in llvm code as indicated in the following crash dump:

Process: Chimera2 [57020]
Path: /Users/USER/*/Chimera2.app/Contents/bin/Chimera2
Identifier: Chimera2
Version: ???
Code Type: X86-64 (Native)
Parent Process: bash [64539]
Responsible: Emacs-10.7 [64521]
User ID: 501

Date/Time: 2015-07-28 15:26:01.972 -0700
OS Version: Mac OS X 10.10.4 (14E46)
Report Version: 11
Anonymous UUID: ADCA02F2-9A59-6574-CF8F-380125498A20

Time Awake Since Boot: 1200000 seconds
